Arlows 1 meter - nylon - stainless steel braided hose
It is one meter of very highly finished multilayer nylone braided hose.
(if you need more than a meter please buy the required amount of articles)
This consists of 2 layers of rubber, one steel flex layer and an outer layer of nylon protection.
Due to this combination the hoses are much more flexible than the steel braided hoses.
The hose can be used for fuel systems, methanol, oil, E85 and E10.
Temperature range:-40 ° C to 150 ° C
Color: Black
Table - tube dimensions:
Dash 4 (7/16 - 20 UNF): Internal diameter 5, 56mm / 11, 13 mm outside diameter / working pressure: 1000 PSI / burst limit: 2000 PSI
Dash 6 (9/16 - 18 UNF): Internal diameter 8, 73mm / 13, 89 mm outer diameter / working pressure: 1000 PSI / burst limit: 2000 PSI
Dash 8 (3/4 - 16 UNF): Internal diameter 11, 12mm / 16, 28 mm diameter / working pressure: 1000 PSI / burst limit: 2000 PSI
Dash 10 (7/8 - 14 UNF): Internal diameter 14, 27mm / 20, 24 mm outer diameter / working pressure: 1000 PSI / burst limit: 2000 PSI
Dash 12 (1/16 - 12 UNF): Internal diameter 17, 47mm / 23, 82 mm outer diameter / working pressure: 1000 PSI / burst limit: 1400 PSI
Dash 16 (1-5/16 - 12UNF): internal diameter 22, 20mm / 30, 50 mm outside diameter / working pressure: 750 PSI / burst limit: 1400 PSI
Dash 20 (): internal diameter 28, 50mm / 35, 81 mm outer diameter / working pressure: 500 PSI / burst limit: 1400 PSI

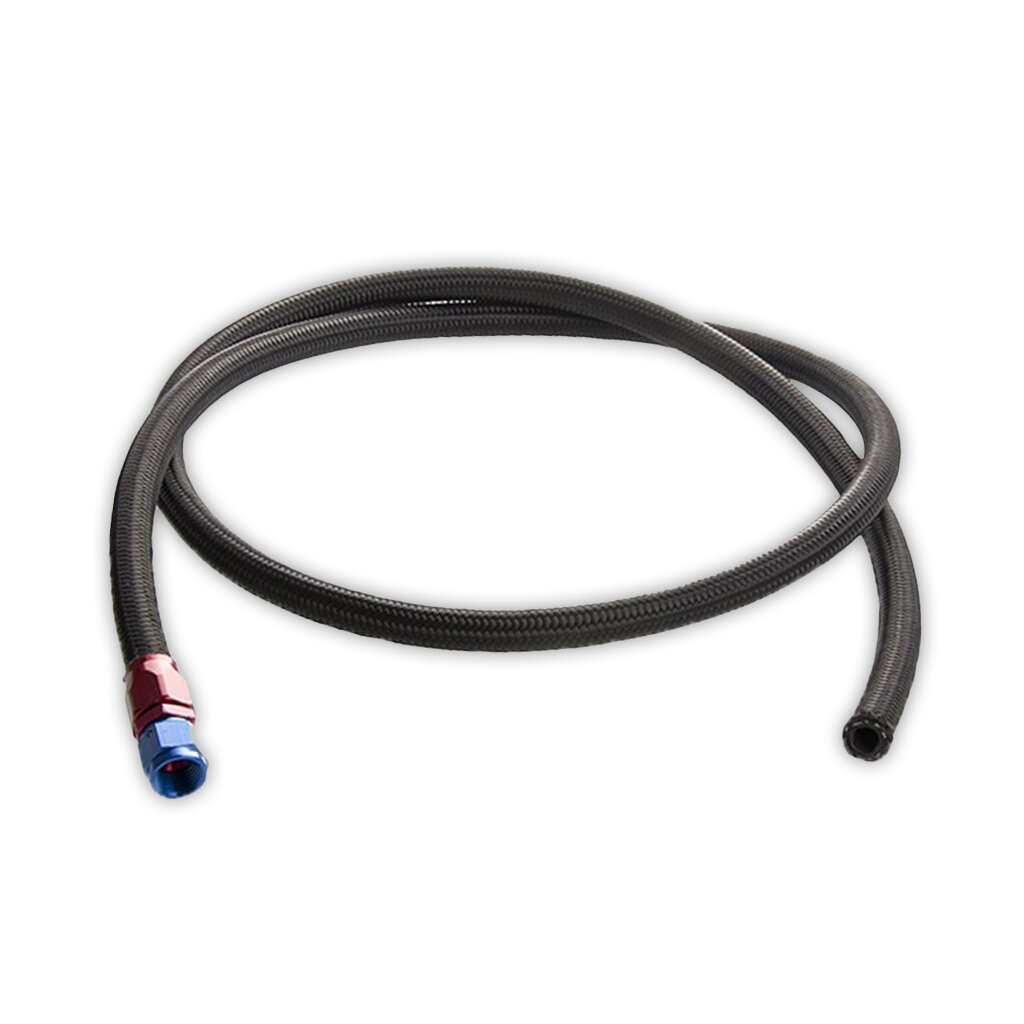

Note that the pictured dash connector is not included!
| Manufacturer: | Arlows |
| Category: | ON / DASH HOSES |
| Item number: | AR8392 |
| Thread: | Dash 4 |
| Product weight: | 0,10 Kg |
| Contents: | 1,00 m |
