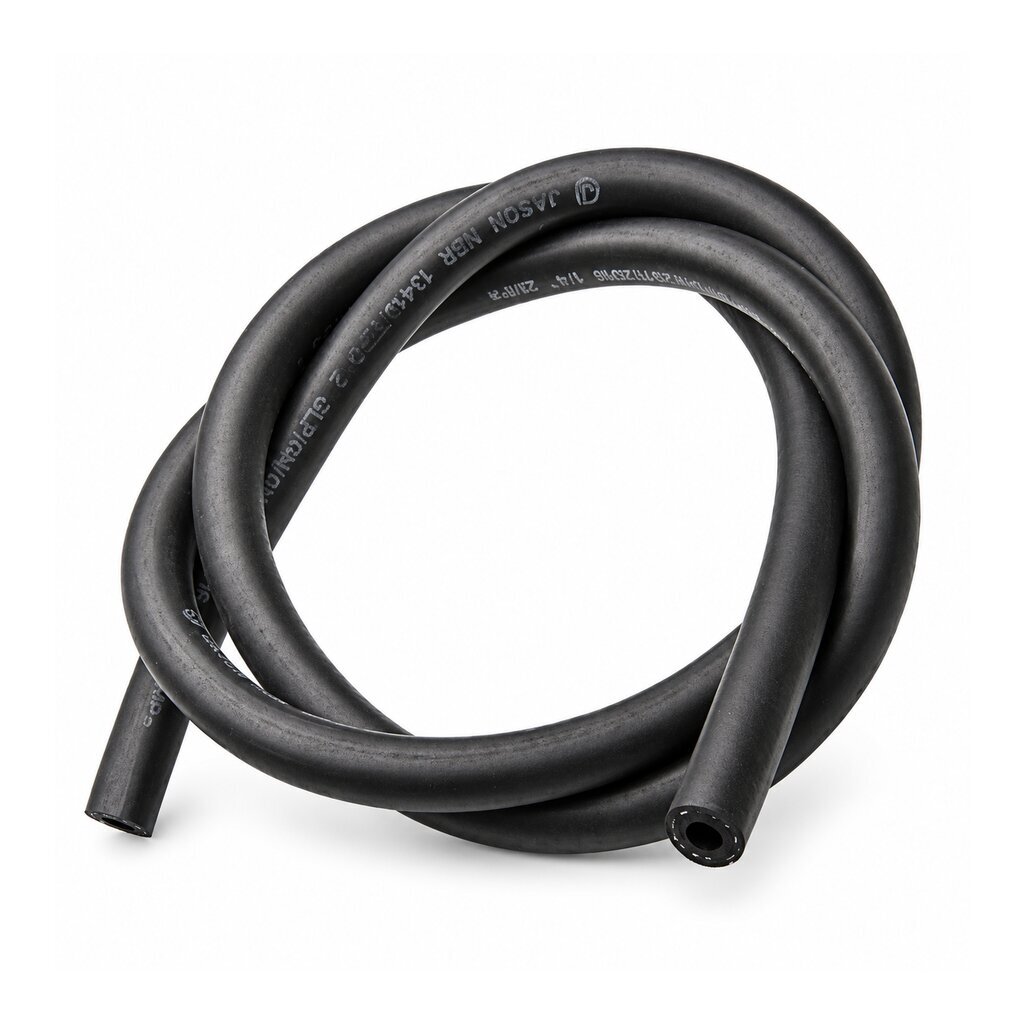

Arlows 1 Meter Rubber Oil Hose
High-quality multi-layer rubber hose with stable textile intermediate layer. Sold by the meter for oil, fuel and more.
One meter of very high-quality multi-layer rubber hose with a stable textile intermediate layer. Flexible, pressure-resistant and suitable for gasoline, diesel, E85, air, oil and water. Ideal for fuel lines, oil lines, breathers and general fluid routing in the engine bay or tuning applications.
Why this hose?
MULTI-LAYER WITH TEXTILE
Stable textile intermediate layer for good pressure resistance and shape retention. Suitable up to max. 10 bar.
-40 °C TO 100 °C
Wide temperature range. Reliable in the engine bay under normal operating conditions.
VERSATILE USE
Suitable for gasoline, diesel, E85, air, oil and water. One hose for many applications.
SOLD BY THE METER
1 meter per unit. For longer runs simply order the required number of meters and cut to length.
Technical data
| Length | 1 meter (sold by the meter) |
| Construction | Multi-layer rubber hose with stable textile intermediate layer |
| Pressure rating | up to max. 10 bar |
| Temperature range | -40 °C to 100 °C |
| Media | Gasoline, diesel, E85, air, oil, water |
| Diameter | see selected variant / Dash size |
Available sizes (overview)
| Dash 4 | Inner diameter 6 mm / Outer diameter 15 mm |
| Dash 6 | Inner diameter 9 mm / Outer diameter 17 mm |
| Dash 8 | Inner diameter 12 mm / Outer diameter 21 mm |
| Dash 10 | Inner diameter 16 mm / Outer diameter 25 mm |
| Dash 12 | Inner diameter 19 mm / Outer diameter 29 mm |
The exact inner and outer diameter applies to the variant you select.
Notes
For lengths over 1 meter, order the corresponding number of meters. The hose can be cut to the required length. Matching hose clamps and holders available separately.
Suitable for the described applications. Professional installation and suitable clamps recommended. Not intended for extreme high-pressure hydraulic systems.
| Manufacturer: | Arlows |
| Category: | OIL SLIDES |
| Item number: | TT00321 |
| Product weight: | 0,10 Kg |
