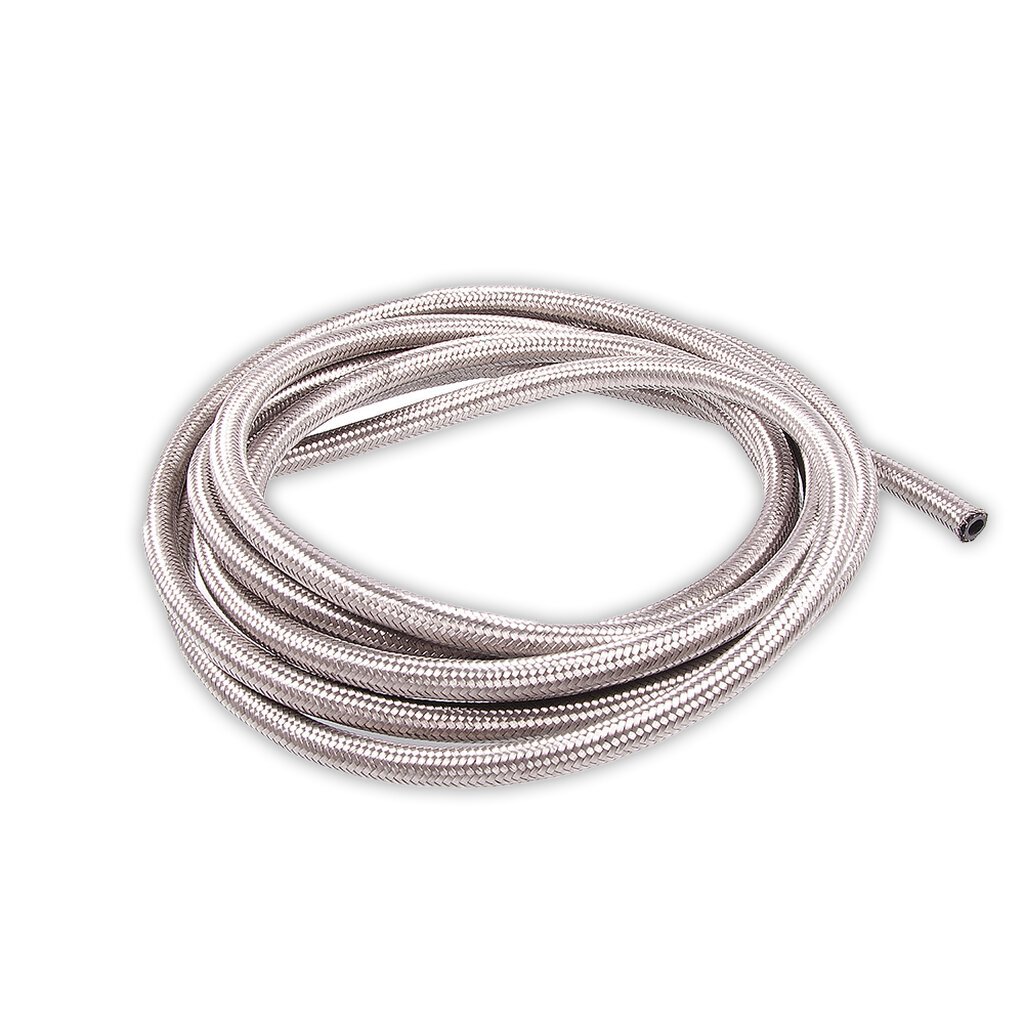

Arlows 1 Meter SteelflexHose

Arlows 1 meter stainless steel braided hose

size

from

12,67 €

12,67 € per 1 m

incl. 19% VAT , plus (Paketversand)

From	Unit price (1,00 m)	Base price
2	14,90 €*	14,90 € per m
5	14,90 €*	14,90 € per m
10	14,90 €*	14,90 € per m

This item has variations. Please select the requested variation.

Available immediately

Description
Product tags

STEEL FLEX AR8394

Arlows Steel Flex Hose 1 Meter

The classic. Multi layer. Steel outside.
Multi layer steel braided hose for petrol, oil, coolant and hydraulics. Corrosion resistant, abrasion resistant, pressure stable. Dash 4 to Dash 20, sold by the metre. AN fittings sold separately. For E85 and methanol use the PTFE version.

MULTI LAYER

Classic steel flex build. Easy to route, holds shape under pressure.

STEEL BRAID

Corrosion and abrasion resistant. Chips and rub hit the braid, not the core.

-40 °C TO +150 °C

Street, track, workshop. 1000 PSI working pressure on Dash 4 to 12, lower on the large sizes.

DASH 4 TO 20

Pick the size above. 1 metre per unit, set quantity to the length you need.

Use cases

Fuel: petrol feed and return, classic systems
Oil: oil cooler, pressure oil, catch can
Cooling: water and auxiliary circuits where hose plus AN is needed
Hydraulics: power steering and short pressure runs
Car, van, workshop: visible steel flex look, underbody, engine bay

Technical data

Dash	Thread	ID	OD	Working	Burst
Dash 4	7/16-20 UNF	5.56 mm	11.13 mm	1000 PSI	2000 PSI
Dash 6	9/16-18 UNF	8.73 mm	13.89 mm	1000 PSI	2000 PSI
Dash 8	3/4-16 UNF	11.12 mm	16.28 mm	1000 PSI	2000 PSI
Dash 10	7/8-14 UNF	14.27 mm	20.24 mm	1000 PSI	2000 PSI
Dash 12	1 1/16-12 UNF	17.47 mm	23.82 mm	1000 PSI	1400 PSI
Dash 16	1 5/16-12 UNF	22.20 mm	30.50 mm	750 PSI	1400 PSI
Dash 20		28.50 mm	35.81 mm	500 PSI	1400 PSI

Part number: AR8394
Build: multi layer steel braided hose
Temperature: -40 °C to +150 °C
Sold as: 1 metre per unit, quantity = running metres
Fittings: classic AN Dash fittings, not included

Fitment

Cut the hose square, cover cut wire ends, assemble the AN fitting per the fitting instructions. Illustrated fittings are not included. For E85, methanol and higher pressure use PTFE steel flex AR9106 or PTFE nylon AR9107. The braid is not heat wrap on a manifold.

Need more pressure or E85?

PTFE steel flex AR9106 or AN fittings

SHOP FUEL SYSTEM >

Manufacturers:	Arlows
Category:	ON / DASH HOSES
SKU:	AR8394

Item information	Value
Thread:	Dash 4
Item weight:	0,10 kg
Content:	1,00 m
