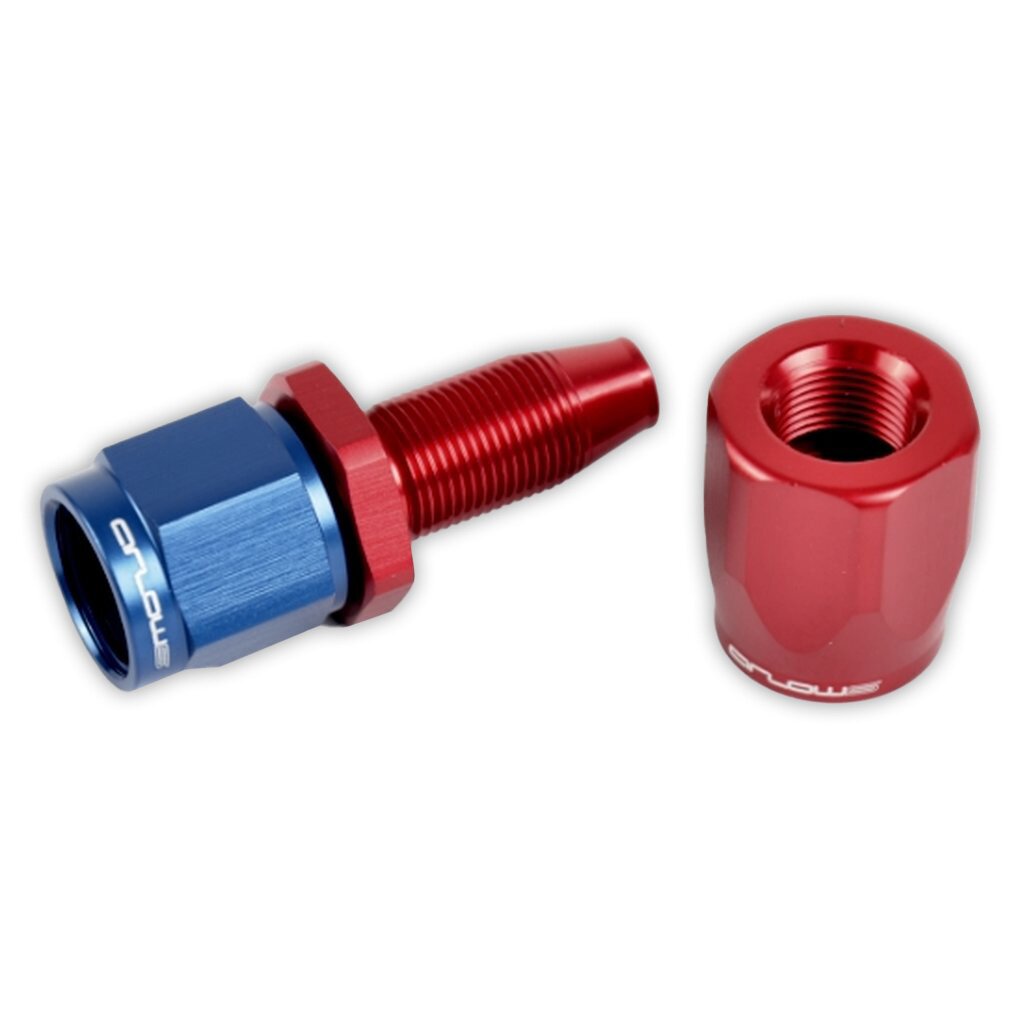

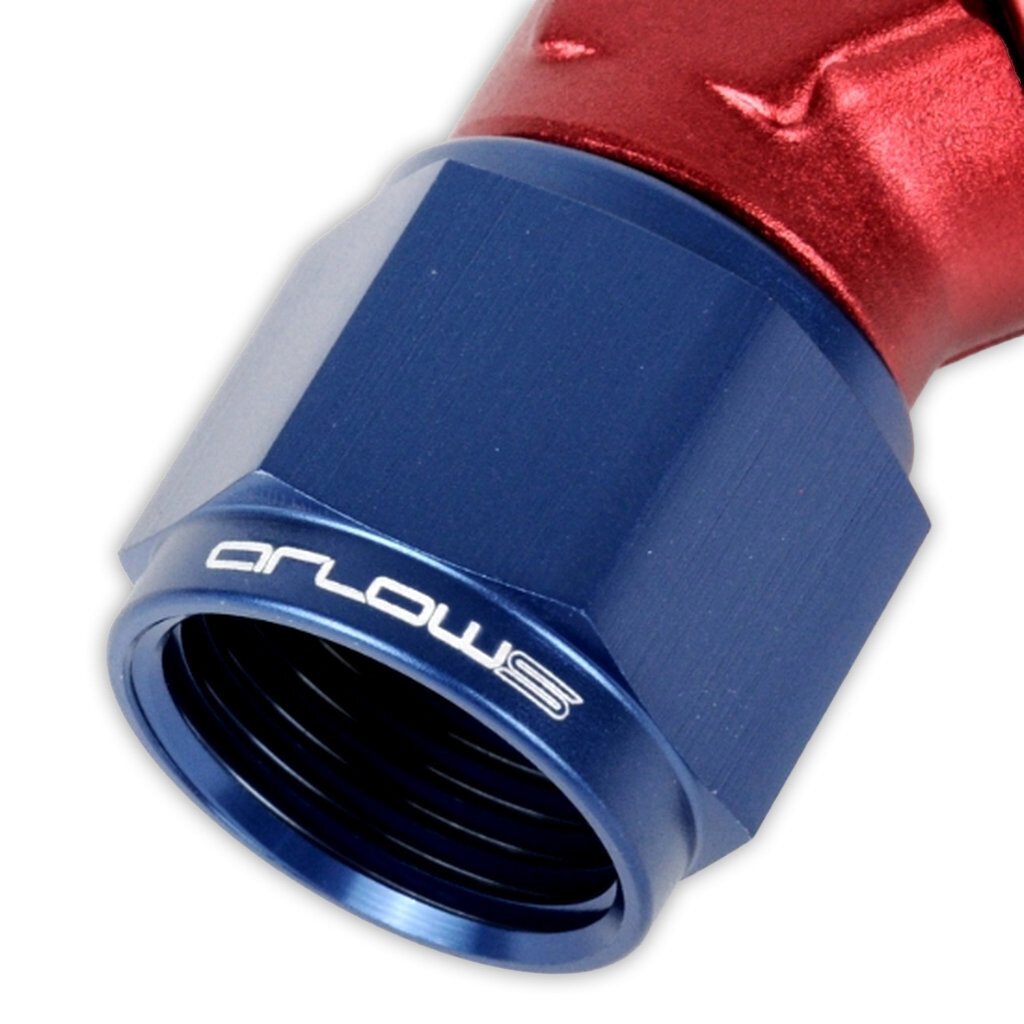

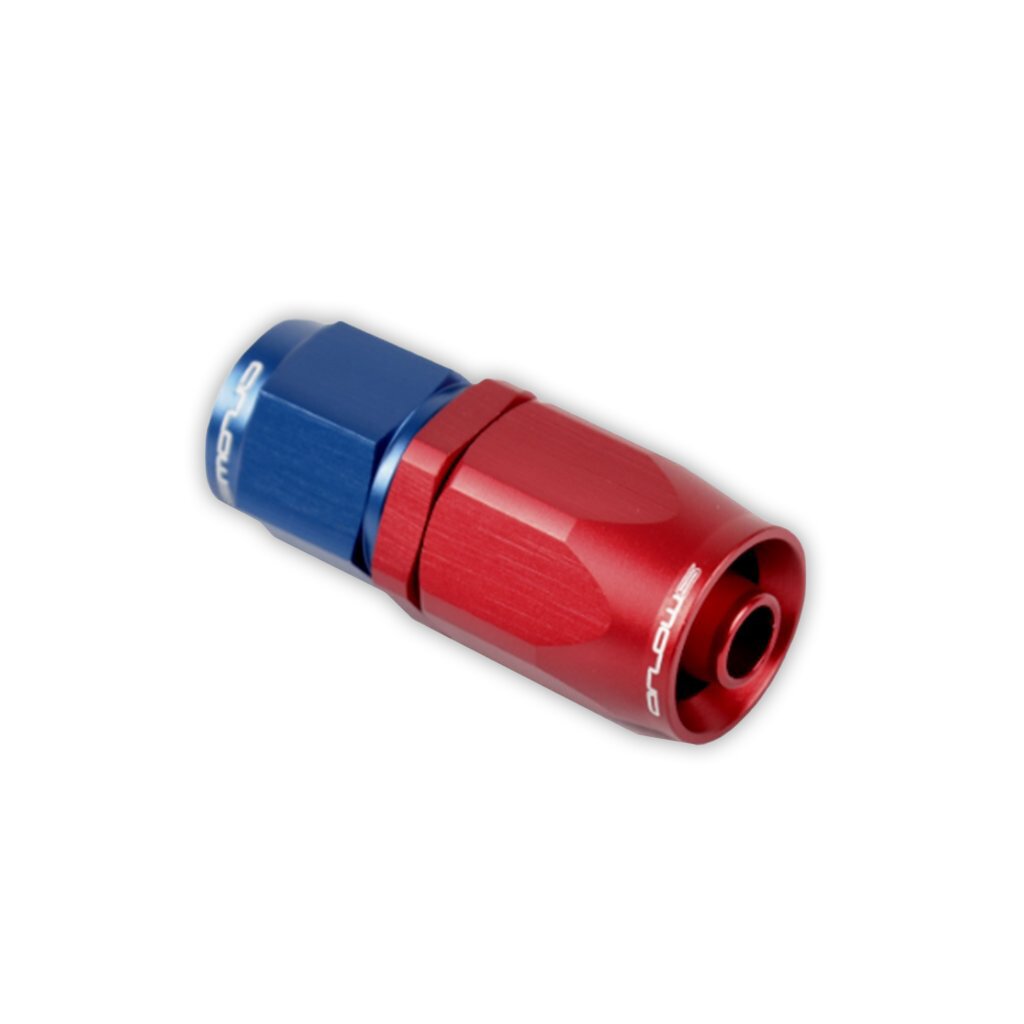

ARLOWS ALUMINUM DASH FITTING - STRAIGHT
Lightweight. Strong. Perfectly Sealed.
Your Upgrade for Maximum Performance.
Building your dream car or race car? Then you need connections you can trust 100 %. The Arlows Straight Aluminum Dash Fitting made of high-quality anodized aluminum is exactly the part trusted by pros in motorsport, tuning and custom builds.
Minimal weight, maximum stability and a premium, corrosion-resistant finish - for absolutely tight, vibration-proof connections on your braided steel flex lines. Whether brakes, fuel, oil, cooling or hydraulics: This fitting sits rock-solid and looks seriously professional.
Why racers and tuners choose Arlows:
- Ultra-lightweight aluminum - noticeably better driving dynamics
- High-quality anodizing - premium racing look + corrosion protection
- Precision engineered - 100 % leak-free connection
- Straight design - space-saving and direct
- Universally compatible with all common braided steel flex lines
- Arlows premium quality - track-proven
Technical Specifications
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16 - 20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16 - 18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4 - 16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8 - 14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16 - 12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16 - 12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8 - 12 UNF | 28.50 mm | 35.81 mm |
Perfect match: The matching Arlows braided steel hose
Order 1 Meter Braided Steel Hose Now
