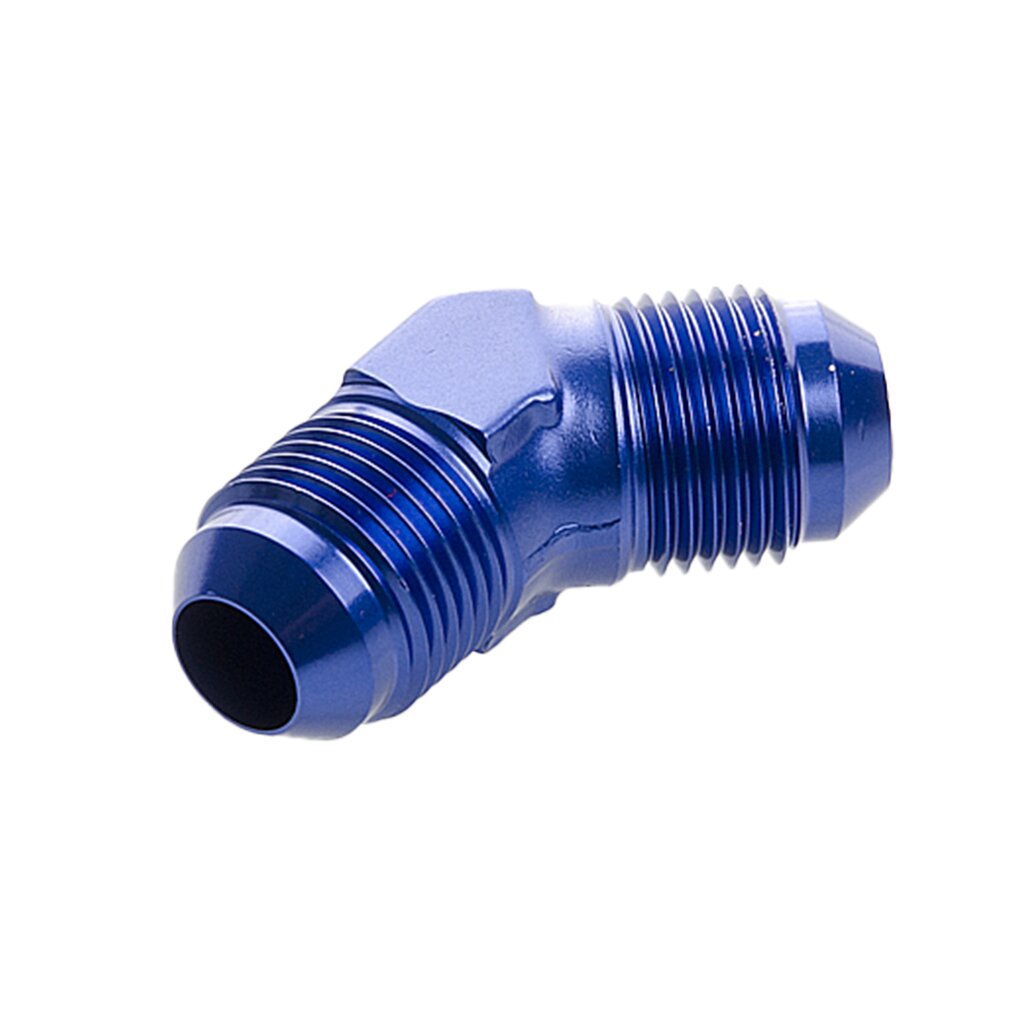

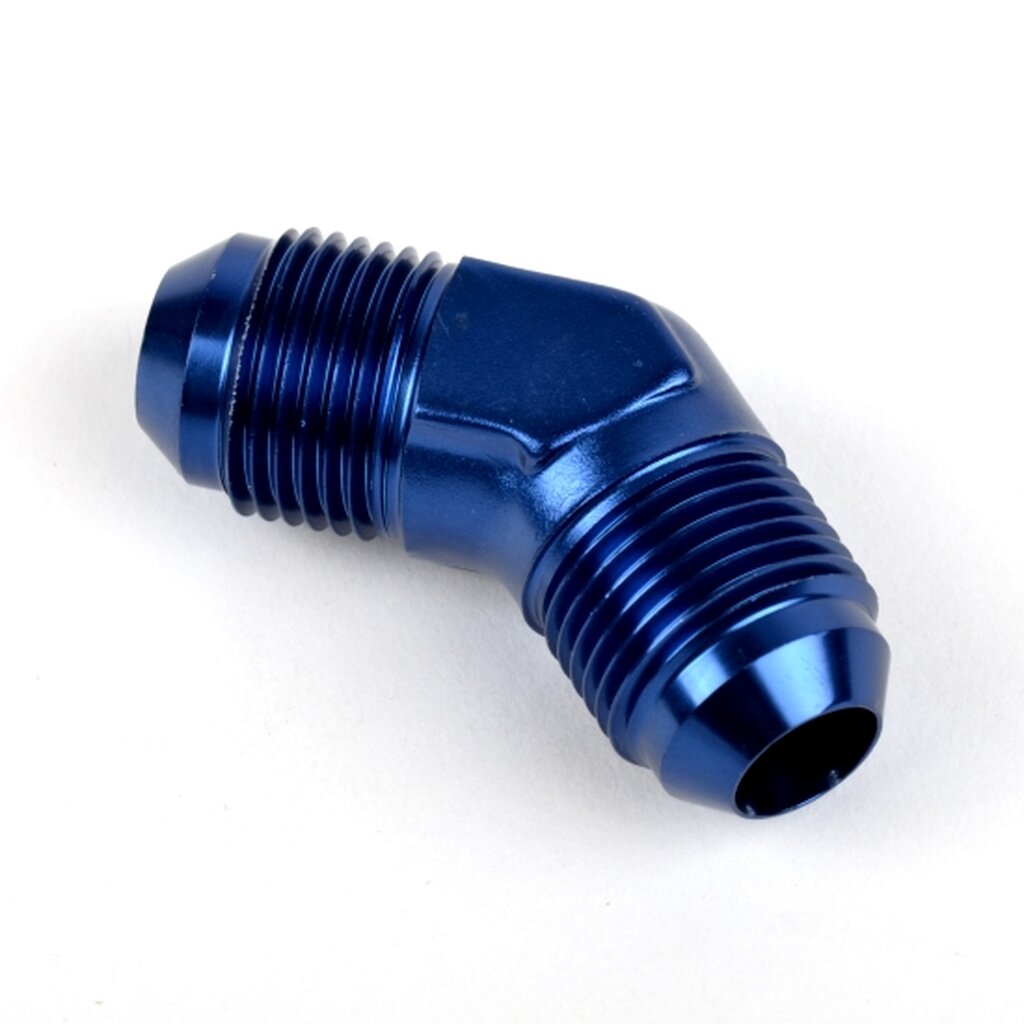

Arlows Connector -45°- (M/M)

Arlows Adapter - 45° - ( male - male )

Connect compatible AN fittings.

Selection: Size and configuration depend on selected variant
Angle: 45°
Material: Aluminium
Finish: Anodised
Connections: 2× male

size

from

5,16 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	5,49 €*
5	5,49 €*
10	5,49 €*

This item has variations. Please select the requested variation.

Available immediately

Description
Product tags

ARLOWS · ADAPTER

Arlows Adapter - 45° - ( male - male )

Connect compatible AN fittings.
This anodised aluminium adapter provides a transition between compatible AN mating parts. Choose the connection configuration and shape to suit the existing fittings and intended line route.

Select the required size and configuration from the available variants.

Key benefits

MATCHING CONNECTIONS

The connection configuration identifies the male or female mating fittings required.

PLAN THE LINE ROUTE

The shape and connection direction help you route the line without unnecessary strain.

ALUMINIUM

The aluminium component supports a weight-conscious plumbing layout.

Technical specifications

Manufacturer	Arlows
SKU	AR8388
Selection	Size and configuration depend on selected variant
Component	Adapter
Angle	45°
Material	Aluminium
Finish	Anodised
Connections	2× male

Applications

For custom oil or fuel lines where every component is suitable for the fluid, pressure and temperature. Select by connection geometry and available clearance.

Installation & notes

Check both connections and sealing faces before installation. Start threads by hand, hold the mating part while tightening and route the lines without tension or twisting. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.

Permitted operating conditions depend on the ratings of every component in the assembly.

Common question

Does AN size alone confirm compatibility?

No. Thread configuration, sealing face and installation clearance must also match the mating component.

Complete your plumbing assembly

Select mating fittings, lines and supports to match the connection and application.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	CONNECTOR 45 DEGREES
SKU:	AR8388

Item information	Value
Thread:	Dash 10 Dash 4 Dash 6 Dash 8 Dash 12
Version:	Verbinder
Angle:	45°
Item weight:	0,10 kg
