Arlows Connector Dash 8 - 90° - High Flow (3/4 - 16 UNF: female)

Arlows Adapter AN-8 - 90° - High Flow ( 3/4 - 16 UNF: Female )

A 90° turn with a continuous flow section.

AN size: AN-8
Angle: 90°
Material: Aluminium
Finish: Anodised
Thread: 3/4 - 16 UNF

18,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	17,75 €*
5	17,20 €*
10	16,64 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · HIGH FLOW ELBOW ADAPTER

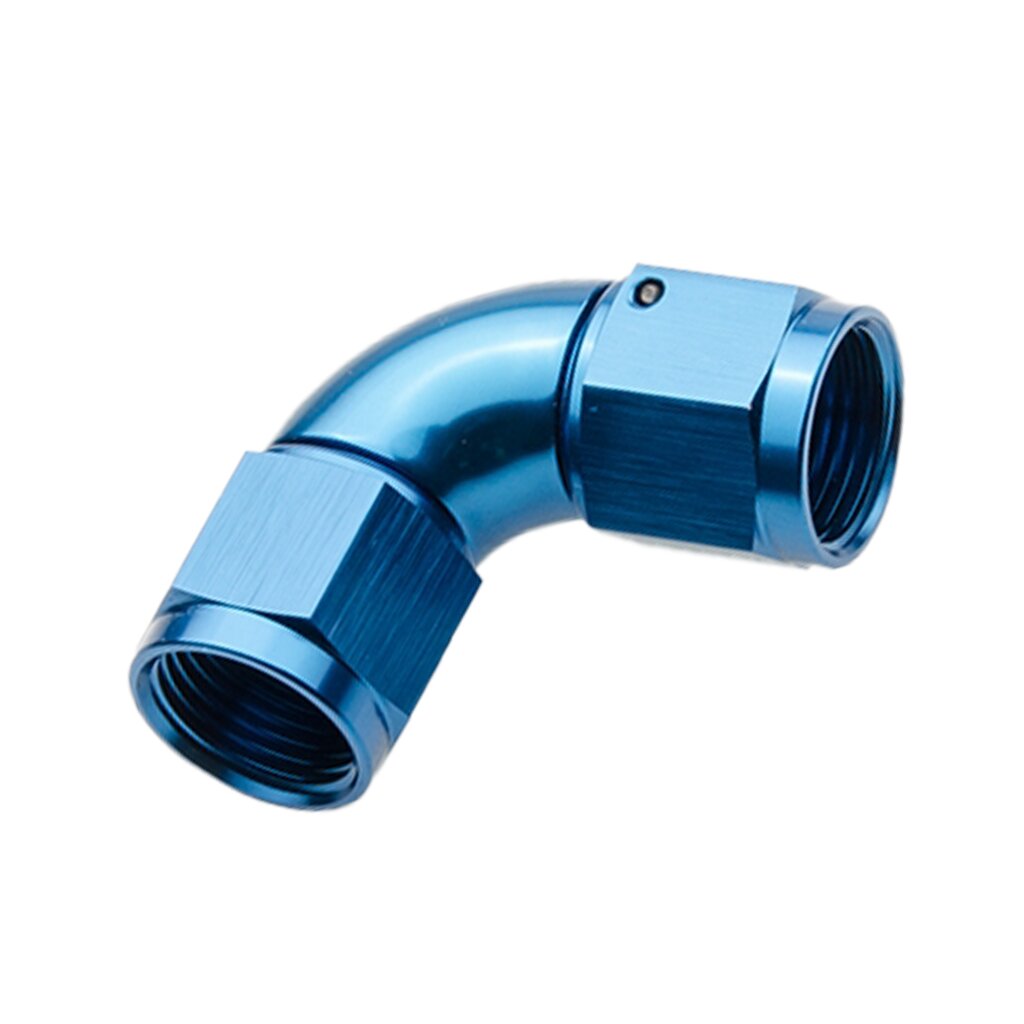

Arlows Adapter AN-8 - 90° - High Flow ( 3/4 - 16 UNF: Female )

A 90° turn with a continuous flow section.
The High Flow adapter features a connecting section CNC-machined from solid material. The product description specifies a non-reducing internal passage and a generous bend radius to support flow through the turn.

This version: AN-8, 90°.

Key benefits

HIGH FLOW DESIGN

The stated constant cross-section avoids an additional narrowing within the adapter.

TWO FEMALE THREADS

The female connections join compatible male AN fittings through a 90° bend.

ALUMINIUM

The aluminium component supports a weight-conscious plumbing layout.

Technical specifications

Manufacturer	Arlows
SKU	AR3218
AN size	AN-8
Component	High Flow elbow adapter
Angle	90°
Material	Aluminium
Finish	Anodised
Thread	3/4 - 16 UNF
Connections	2× female
Manufacture	CNC-machined

Applications

For compatible AN lines requiring a 90° turn with two female connections. Check clearance for the larger bend before installation.

Installation & notes

Check bend position and clearance before tightening. Start both mating parts squarely, use suitable tools to hold the assembly and connect the lines without twisting or tension. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.

Permitted operating conditions depend on the ratings of every component in the assembly.

Common question

Does AN size alone confirm compatibility?

No. Thread configuration, sealing face and installation clearance must also match the mating component.

Complete your plumbing assembly

Select mating fittings, lines and supports to match the connection and application.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	CONNECTOR 90 DEGREES
SKU:	AR3218

Item information	Value
Version:	Verbinder
Thread:	Dash 8
Angle:	90°
Item weight:	0,10 kg
