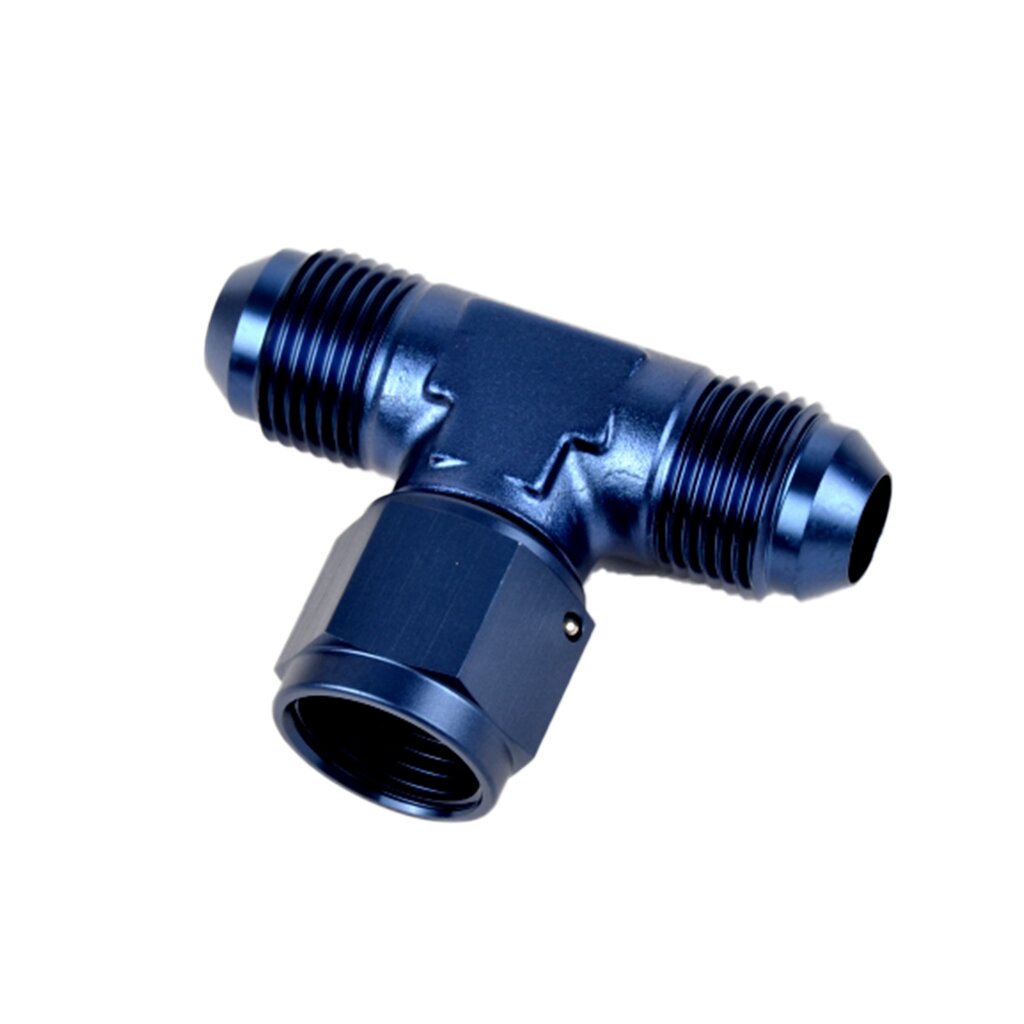

Arlows Connector / T-Adapter Dash 16 (M/W/M)

Arlows T-piece adapter AN-16 ( female - male - male )

Three connections in one line junction.

AN size: AN-16
Material: Aluminium
Finish: Anodised
Colour: Blue
Thread: 1-5/16 -12UNF

22,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	22,27 €*
5	22,27 €*
10	22,27 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · T-PIECE

Arlows T-piece adapter AN-16 ( female - male - male )

Three connections in one line junction.
This aluminium T-piece joins compatible line sections at a common branch. Match the connection arrangement to the intended outlets and mating fittings.

This version: AN-16, Blue.

Key benefits

T-SHAPED JUNCTION

Three connections combine several line routes in one component.

SELECT THE CONNECTION LAYOUT

Port orientation determines which mating parts and clearances are required.

ALUMINIUM

The aluminium component supports a weight-conscious plumbing layout.

Technical specifications

Manufacturer	Arlows
SKU	AR8195
AN size	AN-16
Component	T-piece
Material	Aluminium
Finish	Anodised
Colour	Blue
Thread	1-5/16 -12UNF
Connections	2× male / 1× female
Connection sizes	3× AN-16
Manufacture	CNC-machined

Applications

For custom line branches. Check the required flow and the correct mating connection for each branch separately.

Installation & notes

Compare every connection with its mating fitting before installation. Align the T-piece without strain and support the lines to prevent pulling or leverage on the junction. Seal any unused connections with suitable matching plugs or caps. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.

Permitted operating conditions depend on the ratings of every component in the assembly.

Common question

Does AN size alone confirm compatibility?

No. Thread configuration, sealing face and installation clearance must also match the mating component.

Complete your plumbing assembly

Select mating fittings, lines and supports to match the connection and application.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	T-BAGS
SKU:	AR8195

Item information	Value
Colour:	Blue
Version:	Verbinder
Thread:	Dash 12 Dash 16
Angle:	T-Piece
Item weight:	0,10 kg
