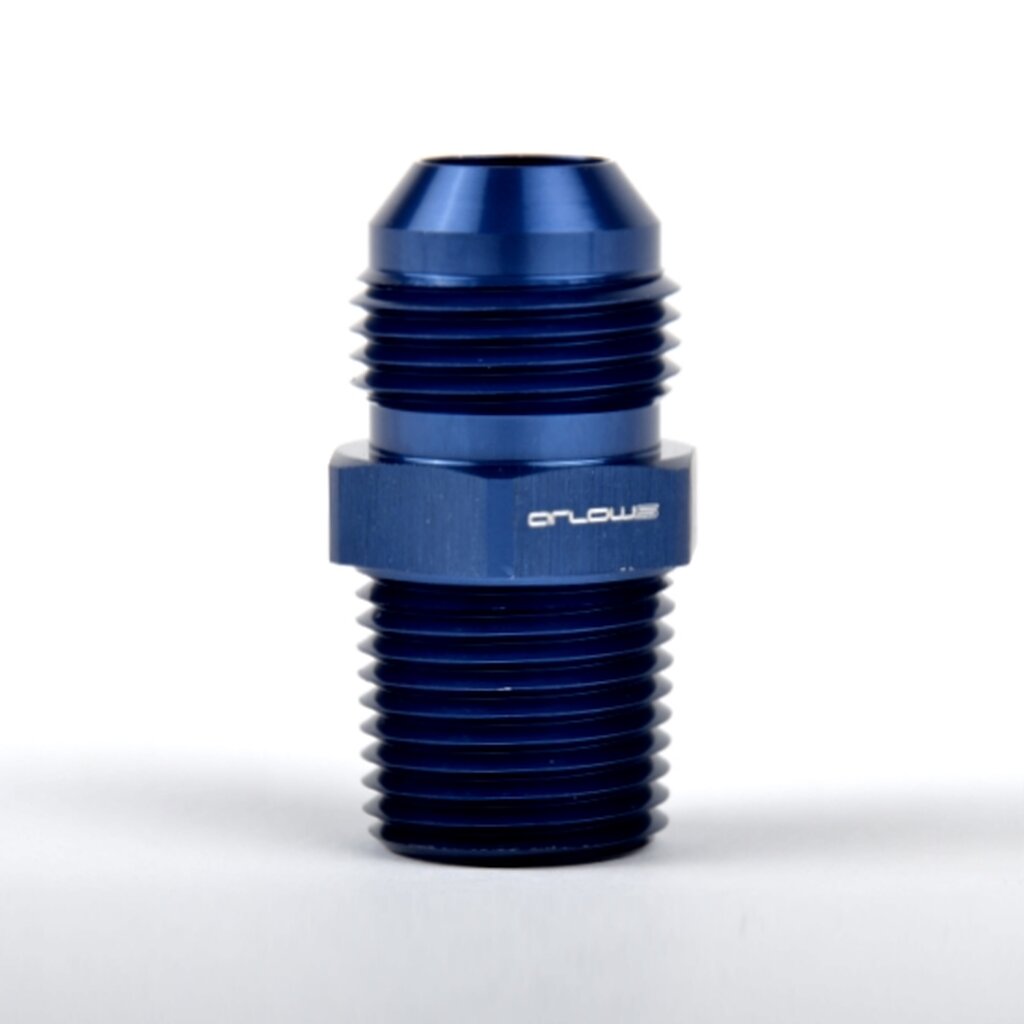

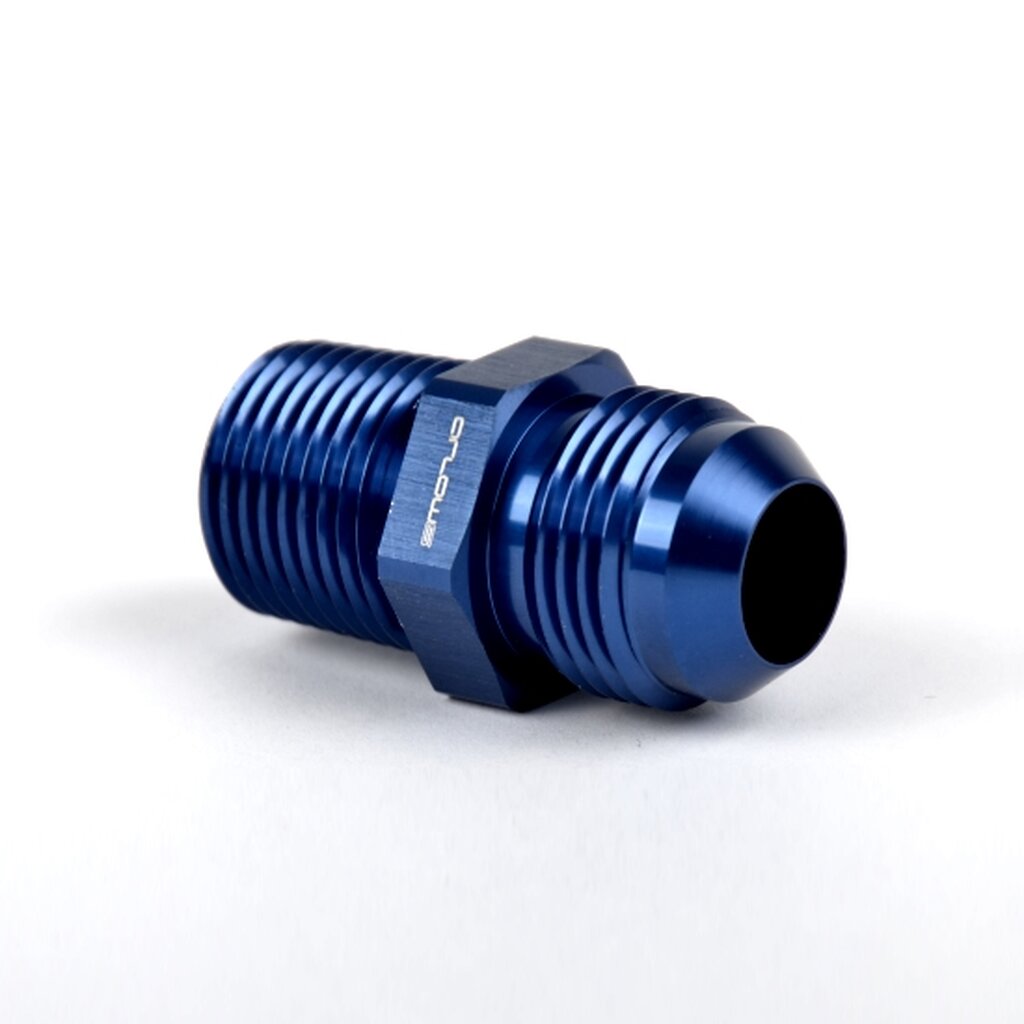

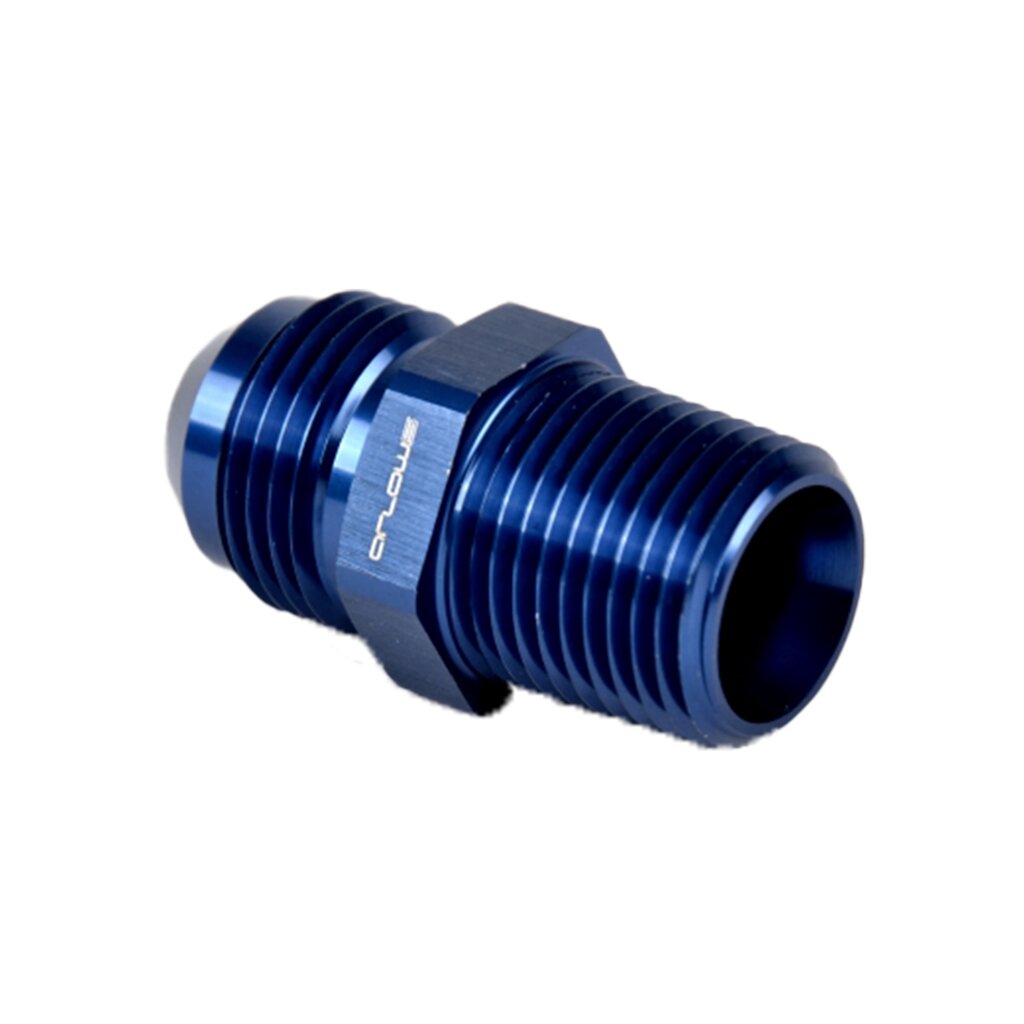

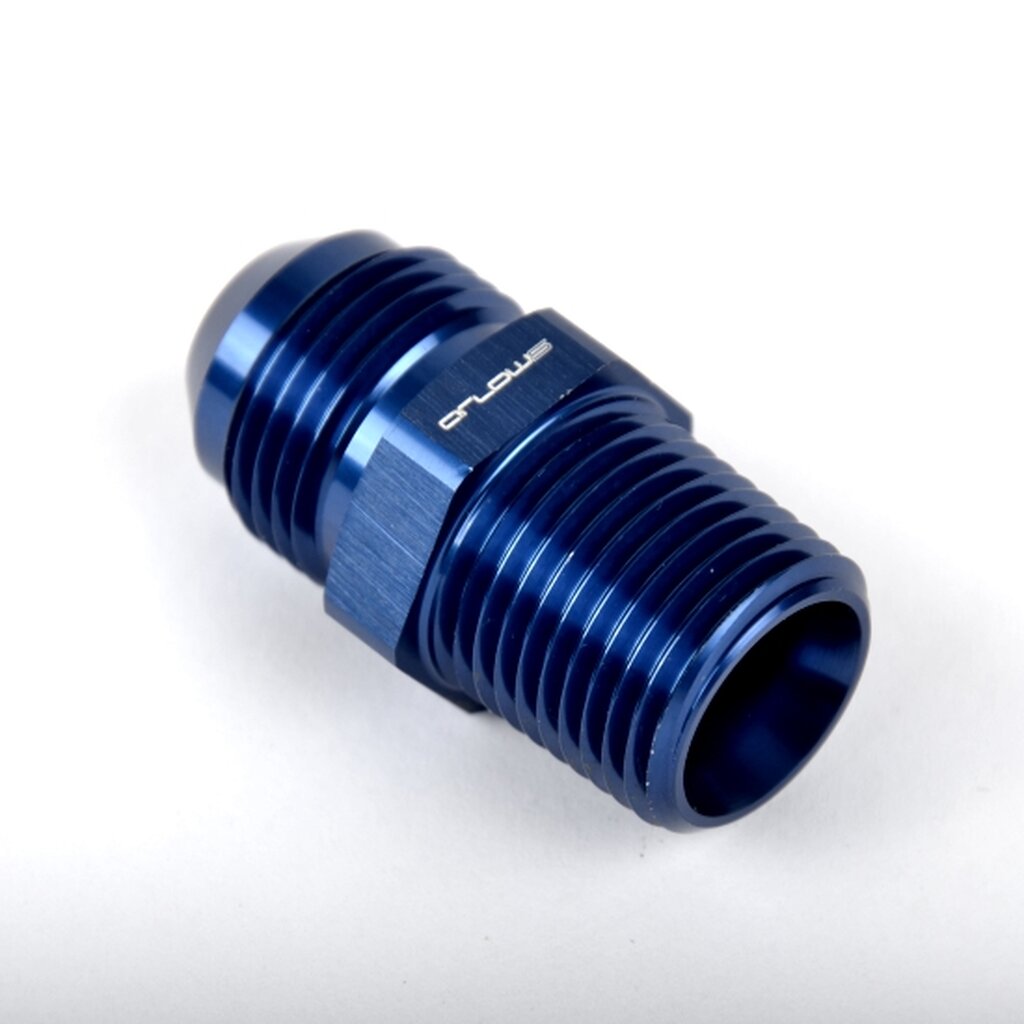

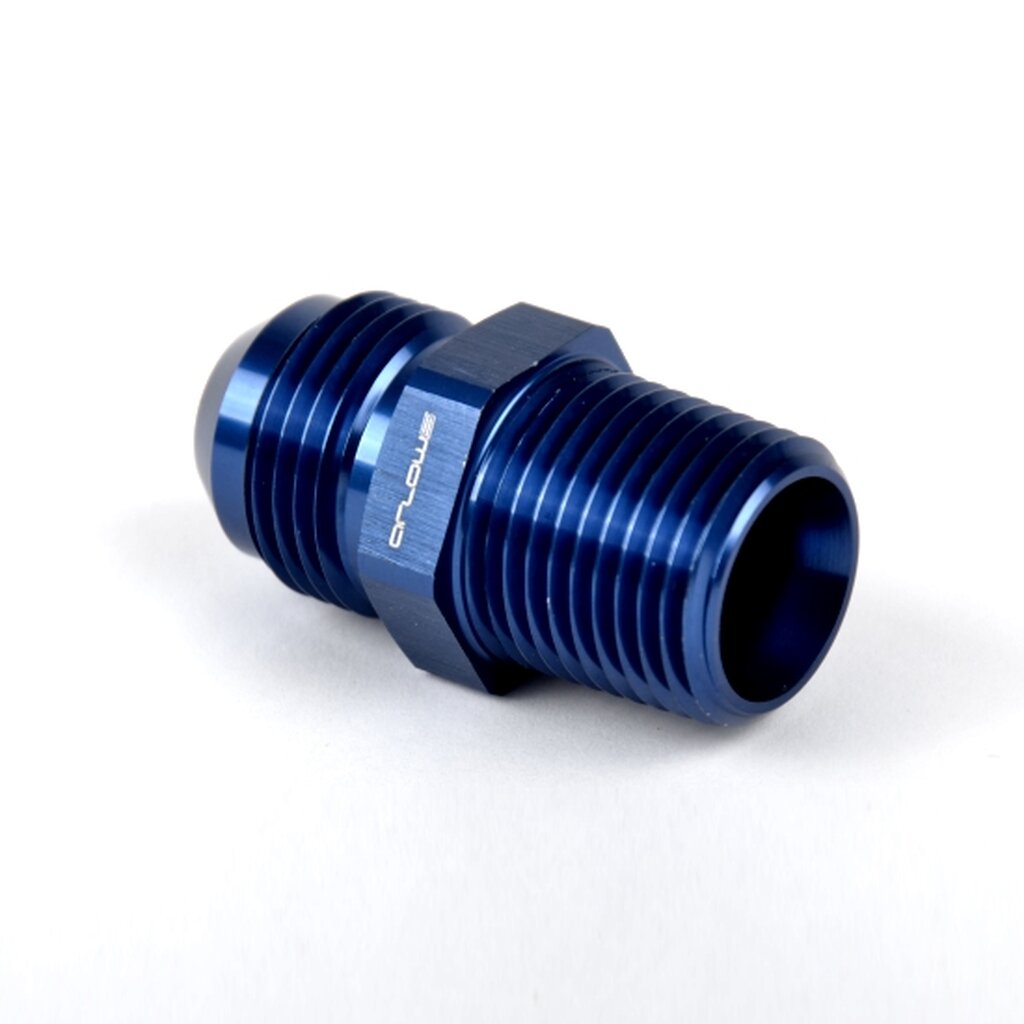

Arlows M12x1 adapter on Dash 4 (screw-in adapter)

Arlows Adapter M12x1 to Dash 4 ( Screw-in adapter )
Connect a metric port to an AN line.

Thread 1: M12x1
Thread 2: Dash 4 ( 7/16 - 20 UNF )
Material: Anodised aluminium

4,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	4,31 €*
5	4,18 €*
10	4,04 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · AR4071

Arlows Adapter M12x1 to Dash 4 ( Screw-in adapter )

Connect a metric port to an AN line.
This screw-in adapter provides a transition between the specified metric thread and an AN connection, allowing a compatible line to be connected to a suitable component port. This version: Thread 1: M12x1. Thread 2: Dash 4 ( 7/16 - 20 UNF ).

Benefits at a glance

METRIC TO AN

The connection combination joins two formats without an additional intermediate adapter.

CHOOSE THE CORRECT FIT

Thread diameter and pitch matter just as much as the sealing face at the port.

Technical specifications

Thread 1	M12x1
Thread 2	Dash 4 ( 7/16 - 20 UNF )
Material	Anodised aluminium
SKU	AR4071

Applications

For components with a matching metric port, including custom oil or fuel plumbing where all parts are approved for the fluid and operating conditions.

Installation & notes

Install metric or straight port threads with the seal required by the sealing face. Thread tape does not replace that seal. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.

Common question

Is the thread diameter enough to confirm fit?

No. Pitch, engagement length and sealing arrangement must also match. Seal the metric side using the method required by its port design.

Complete your line assembly

Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	METRIC THREAD
SKU:	AR4071

Item information	Value
Angle:	Straight
Thread:	Dash 4
Item weight:	0,10 kg
