ARLOWS PTFE ALUMINUM FITTING - BLACK ANODIZED
Lightweight. Strong. Extremely Pressure-Resistant.
Perfect for PTFE/Teflon Lines.

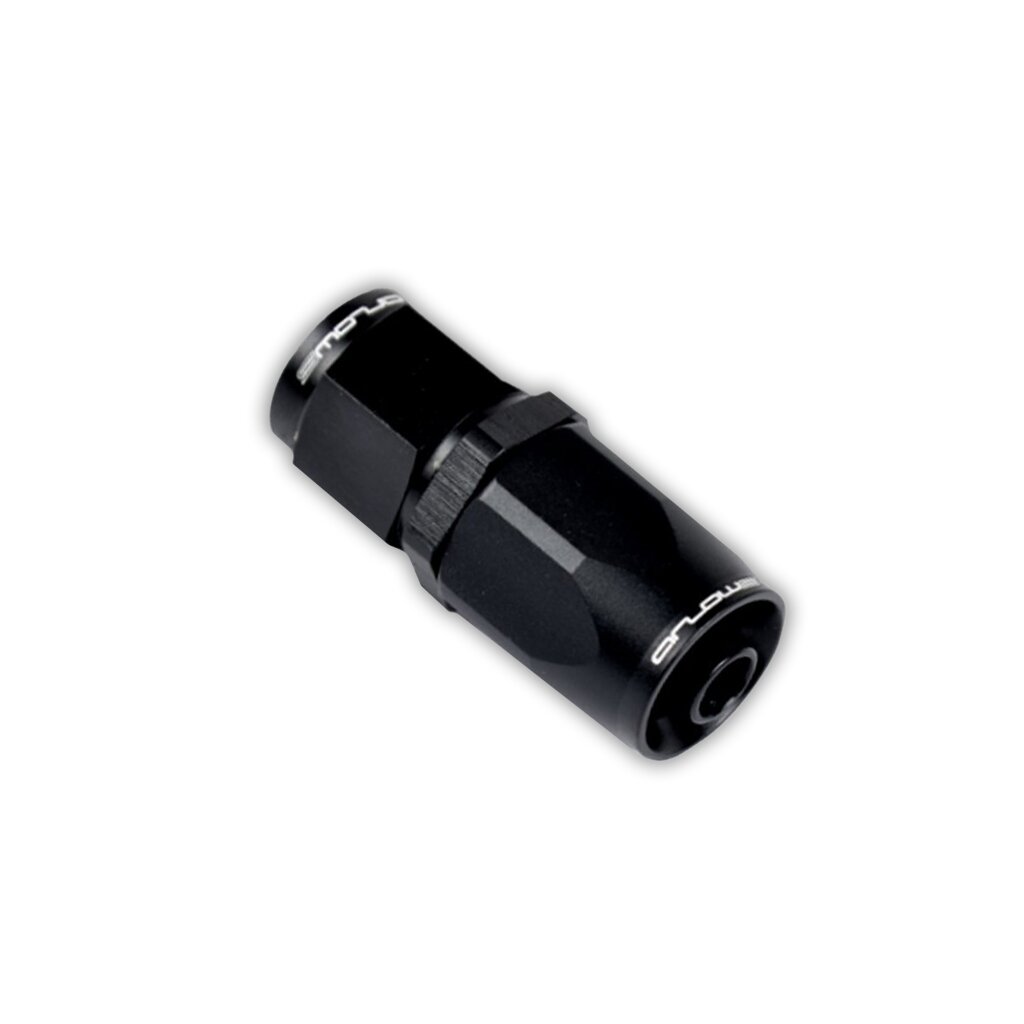

Building your dream car or race car? Then you need connections you can trust 100 %. The Arlows PTFE Aluminum Fitting black anodized is the high-quality aluminum fitting specially designed for our Teflon steel flex lines.
The PTFE inner core makes the line extremely resistant to almost all fuels and oils while offering maximum flexibility. The olive compresses the line from the inside and between all layers – for ultimate pressure stability. All fittings feature a 360° swivel for easy, twist-free installation. The sleek black anodized finish completes the professional racing look.
Why racers and tuners choose Arlows:
- PTFE inner core - extremely resistant to almost all fuels and oils
- High flexibility with maximum pressure stability

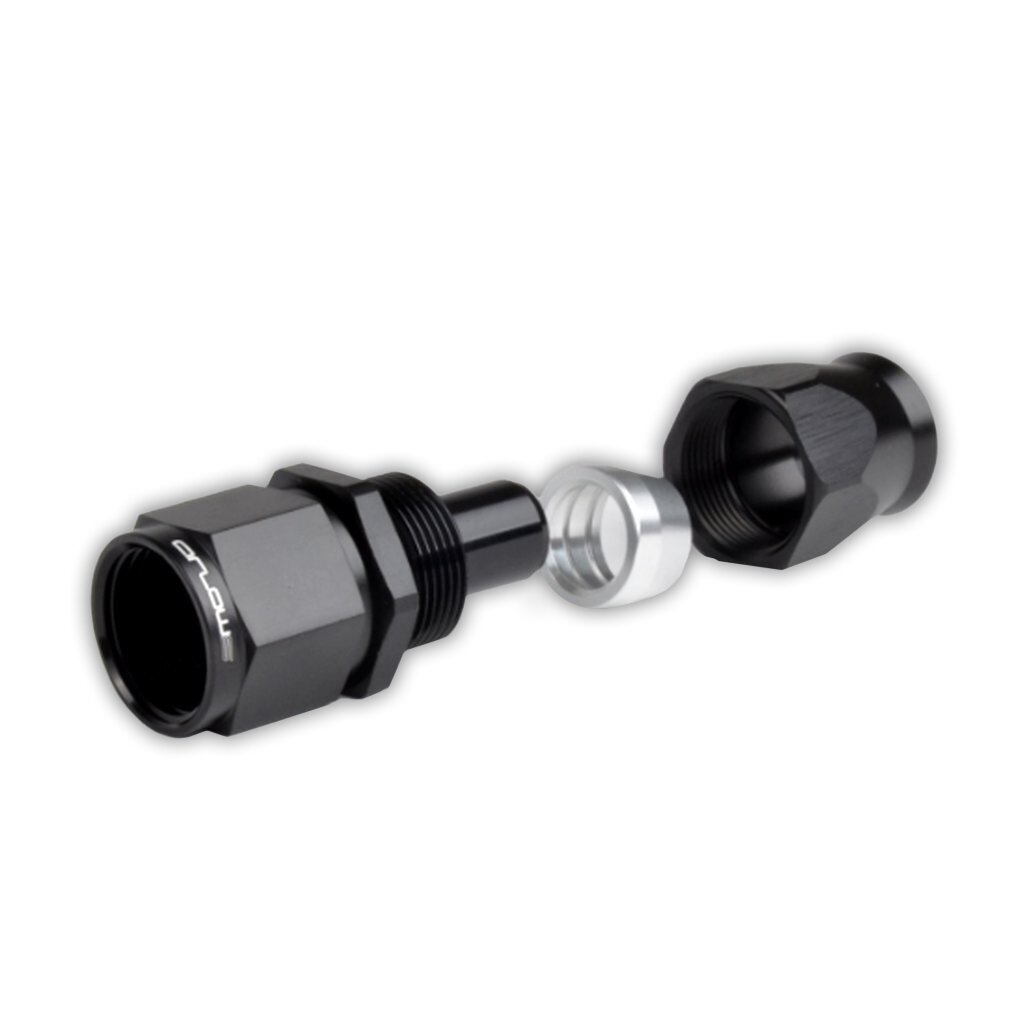

- Olive compression - line pressed from inside and between all layers
- 360° swivel - easy installation without twisting the hose
- Black anodized finish - sleek, discreet racing look
- Temperature range -70°C to +250°C
- Arlows premium quality - track-proven
Technical Specifications
| Dash | Thread | ID | OD | Operating Pressure | Burst Pressure |
|---|---|---|---|---|---|
| Dash 3 | 3/8 - 24 UNF | 3.6 mm | 6.8 mm | 2900 PSI | 7000 PSI |
| Dash 4 | 7/16 - 20 UNF | 5.4 mm | 8.6 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16 - 18 UNF | 8.1 mm | 11.6 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4 - 16 UNF | 10.0 mm | 13.8 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8 - 14 UNF | 13.0 mm | 16.3 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16 - 12 UNF | 16.5 mm | 20.1 mm | 2900 PSI | 6000 PSI |

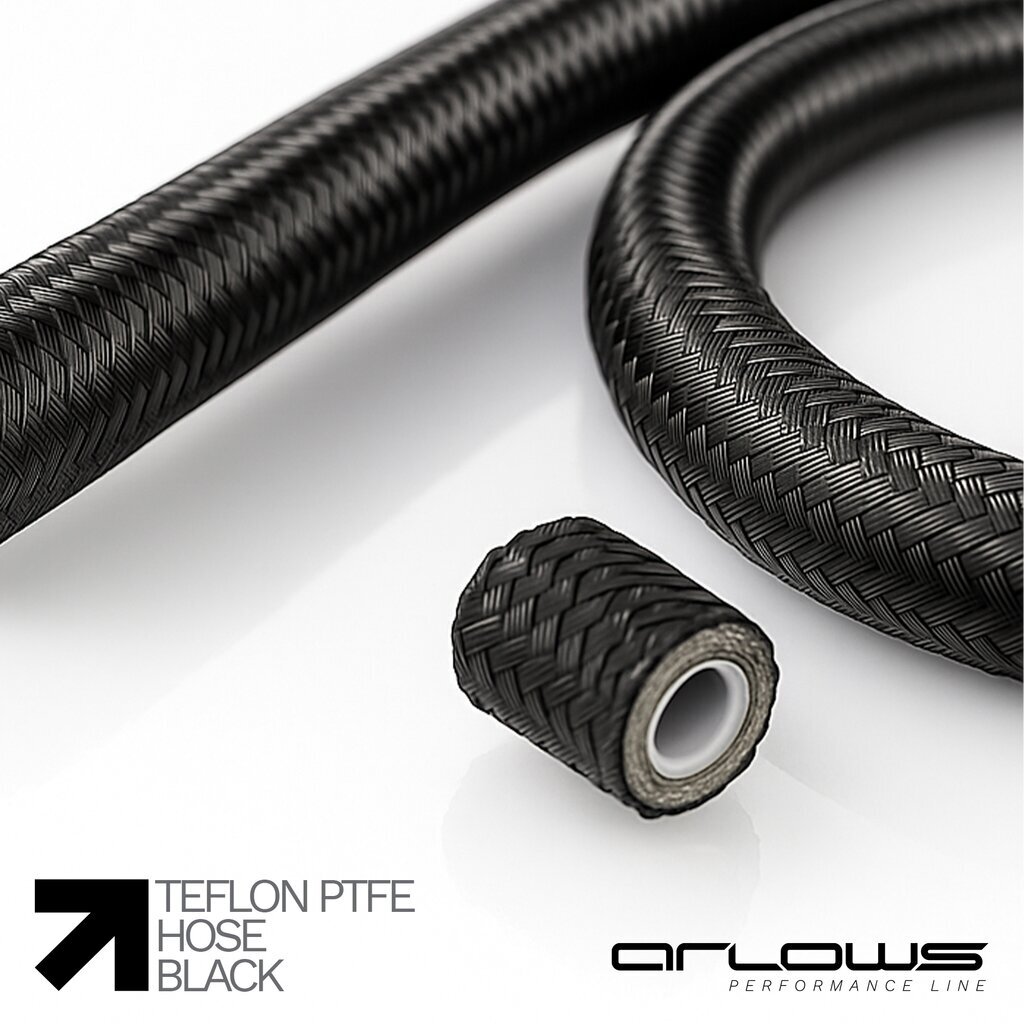

Perfect match: The matching Arlows PTFE Teflon braided hose
Order 1 Meter PTFE Teflon Hose Now| Manufacturer: | Arlows |
| Category: | AN / DASH FITTINGS PTFE |
| Item number: | AR8887 |
| Product weight: | 0,10 Kg |
