Arlows PTFE Sealing Ring

Thread

from

1,80 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	1,46 €*
5	1,43 €*
10	1,41 €*

This item has variations. Please select the requested variation.

Available immediately

Description
Product tags

PTFE OLIVE DASH 3 TO 20

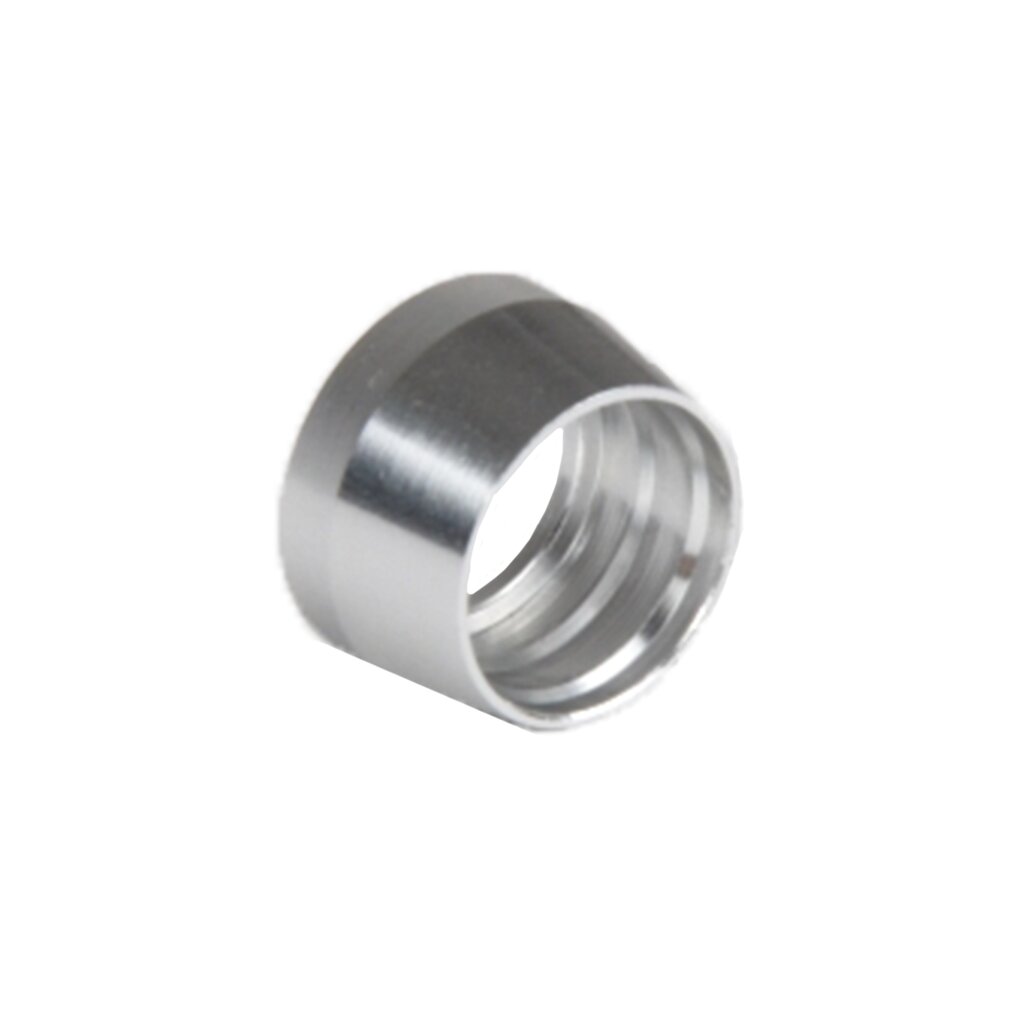

Arlows PTFE Replacement Sealing Olive Dash 3 to 20

The olive seals. Not the fitting alone.
Replacement sealing olive in PTFE / Teflon for Arlows PTFE AN fittings. Pick the size above, Dash 3 to Dash 20. For fuel, oil and hydraulics on PTFE hose. A damaged olive is often why the joint leaks, not the hose.

PTFE / TEFLON

Chemically inert, non stick, dimensionally stable. Stands E85, petrol, diesel, methanol and oil.

DASH 3 TO 20

Pick the size above. Olive and fitting must share the same Dash size.

SPARE PART

For service, rebuilds and leaking joints. Keep the fitting and hose, renew the olive.

SEALS UNDER LOAD

Compresses the PTFE core from the inside and between the layers. Without the right olive the fitting will leak.

Use cases

Service: swap the olive when the joint drips or will not reseat after opening
Rebuild: keep a spare olive ready before the old one tears on removal
Media: fuel, oil, hydraulics on PTFE line
Car, van, motorsport: rail, oil cooler, catch can, pressure oil

Technical data

Material: PTFE / Teflon
Sizes: Dash 3, 4, 6, 8, 10, 12, 16, 20 (pick above)
Use: replacement olive for PTFE AN fittings
Fits: PTFE alu AR8886 / AR8887, PTFE stainless AR8888
Hose: PTFE Teflon AR9106 / AR9107
Not for: classic steel flex AR8394 without a PTFE core

Fitment

Pick the olive in the same Dash size as the fitting, not by eye. Remove the old olive, clean the seat, fit the new olive per the PTFE instructions and crimp. Too tight kills the olive, too loose leaks. Do not reuse a crushed or cut olive. Check for leaks again after the first heat and the first pressure cycle.
