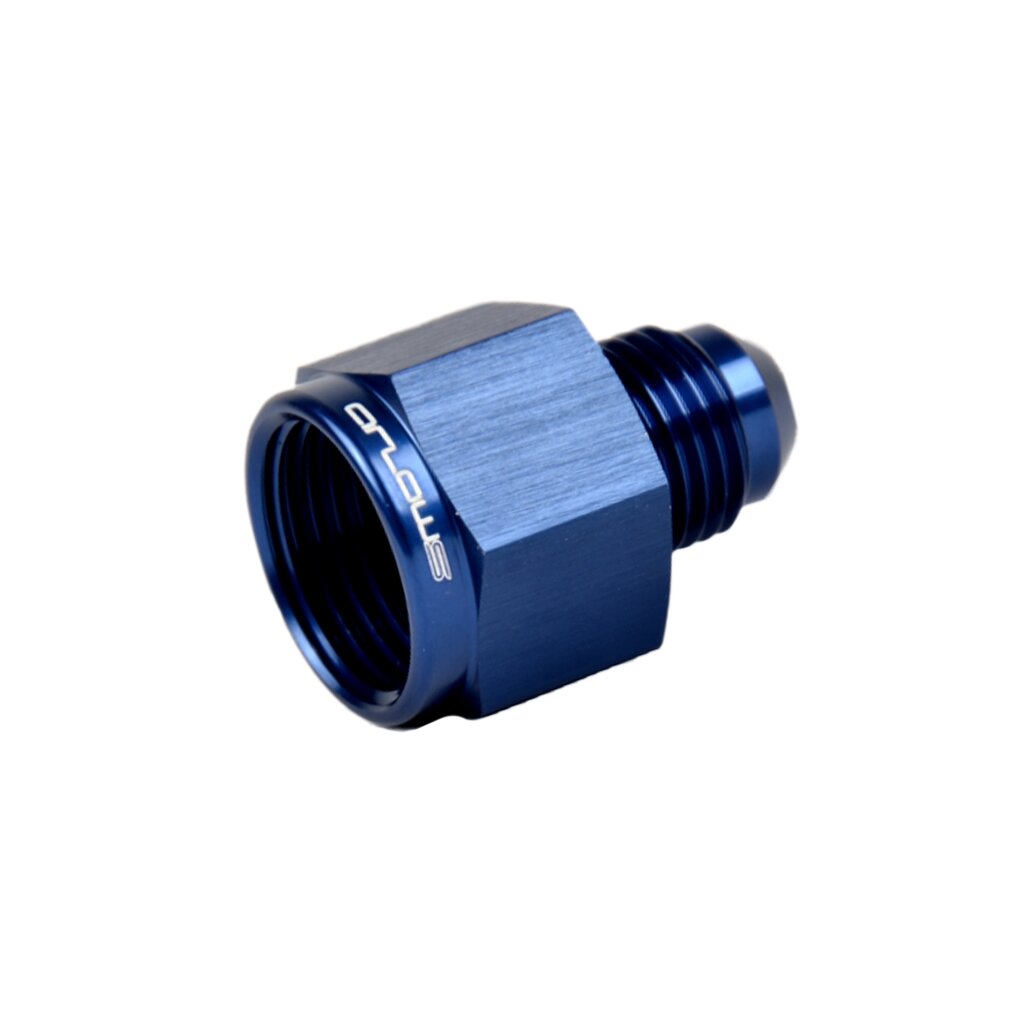

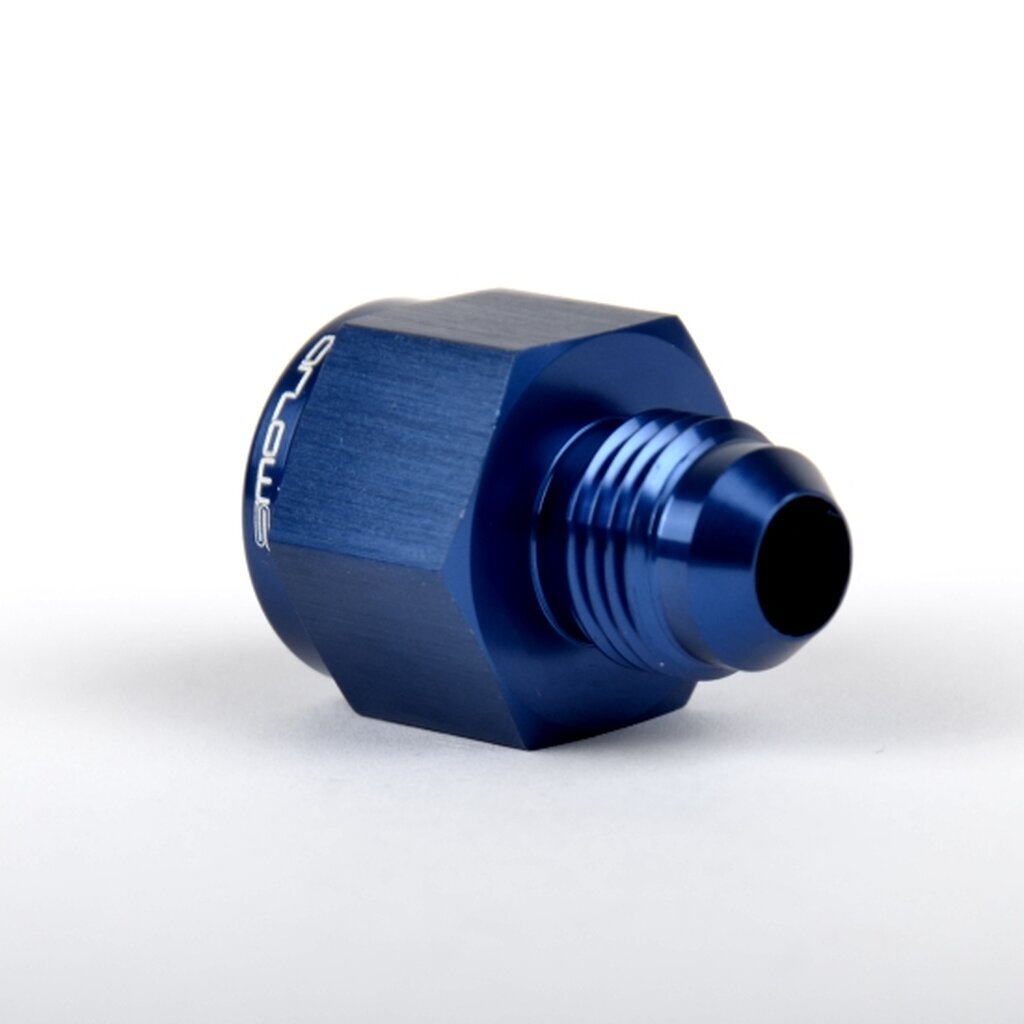

Arlows Reducer Dash 8 to Dash 4 (W/M)

Arlows Reducer Dash 8 to Dash 4 ( female to male )
Connect the specified AN sizes.

Thread 1: female Dash 8 ( 3/4 - 16 UNF )
Thread 2: male Dash 4 ( 7/16 - 20 UNF )
Material: Aluminium
Colour: Blue anodised

6,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	6,30 €*
4	6,10 €*
8	5,91 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · AR2618

Arlows Reducer Dash 8 to Dash 4 ( female to male )

Connect the specified AN sizes.
This adapter joins the specified Dash/AN sizes to help you build a coordinated line layout. Compare each connection and thread configuration with your existing fittings before choosing the part. This version: Thread 1: female Dash 8 ( 3/4 - 16 UNF ). Thread 2: male Dash 4 ( 7/16 - 20 UNF ).

Benefits at a glance

DIRECT SIZE TRANSITION

Two connection sizes in one component simplify matching existing parts.

PLAN YOUR LINE ROUTE

Use the specified design to match fittings and hose routing to the available space.

Technical specifications

Thread 1	female Dash 8 ( 3/4 - 16 UNF )
Thread 2	male Dash 4 ( 7/16 - 20 UNF )
Material	Aluminium
Colour	Blue anodised
Version	female to male
SKU	AR2618

Applications

For transitions between different AN connections in custom line assemblies. In oil or fuel systems, every component must be approved for the fluid, operating pressure, temperature and sealing arrangement.

Installation & notes

Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.

Common question

Which connections need to match?

The AN size, male or female thread and sealing face must match the mating component on each side. Matching thread dimensions alone do not establish sealing compatibility.

Complete your line assembly

Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	STRAIGHT
SKU:	AR2618

Item information	Value
Angle:	Straight
Thread:	Dash 4 Dash 8
Version:	Reducer
Item weight:	0,10 kg
