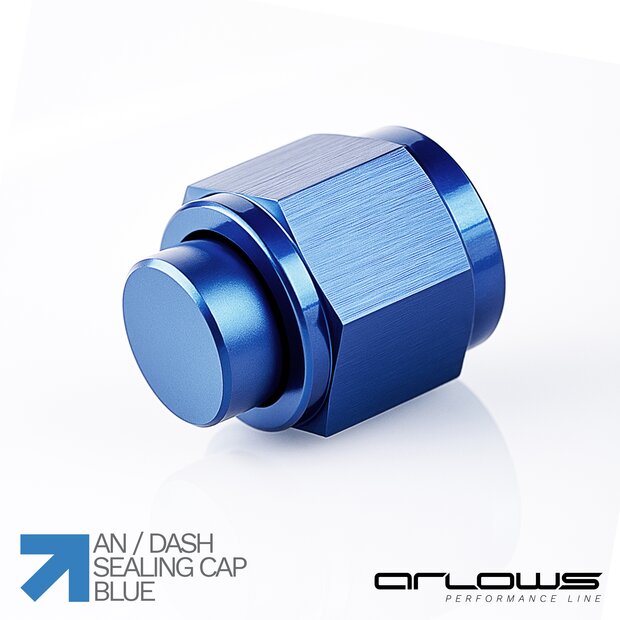

Arlows Blanking cap Blue Dash 4 ( 7/16 - 20 UNF )
Close an unused AN connection.
This blanking cap closes a compatible AN connection. Its thread size and sealing face must match the mating component. This version: Thread: Dash 4 ( 7/16 - 20 UNF ).
Benefits at a glance
MATCHED BLANKING SOLUTION
The correct version closes a connection that is no longer required.
ANODISED ALUMINIUM
The anodised finish complements the appearance of the line assembly.
Technical specifications
| Thread | Dash 4 ( 7/16 - 20 UNF ) |
|---|---|
| Colour | Blue |
| Material | Anodised aluminium |
| SKU | AR1600-1 |
Applications
For closing unused compatible AN connections during line assembly or system changes. Pressurised use requires suitability of the complete connection.
Installation & notes
Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.
Common question
Are caps and plugs interchangeable?
No. A cap screws onto a suitable male thread, while a plug fits into a suitable port. Both the thread and sealing geometry must match.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
