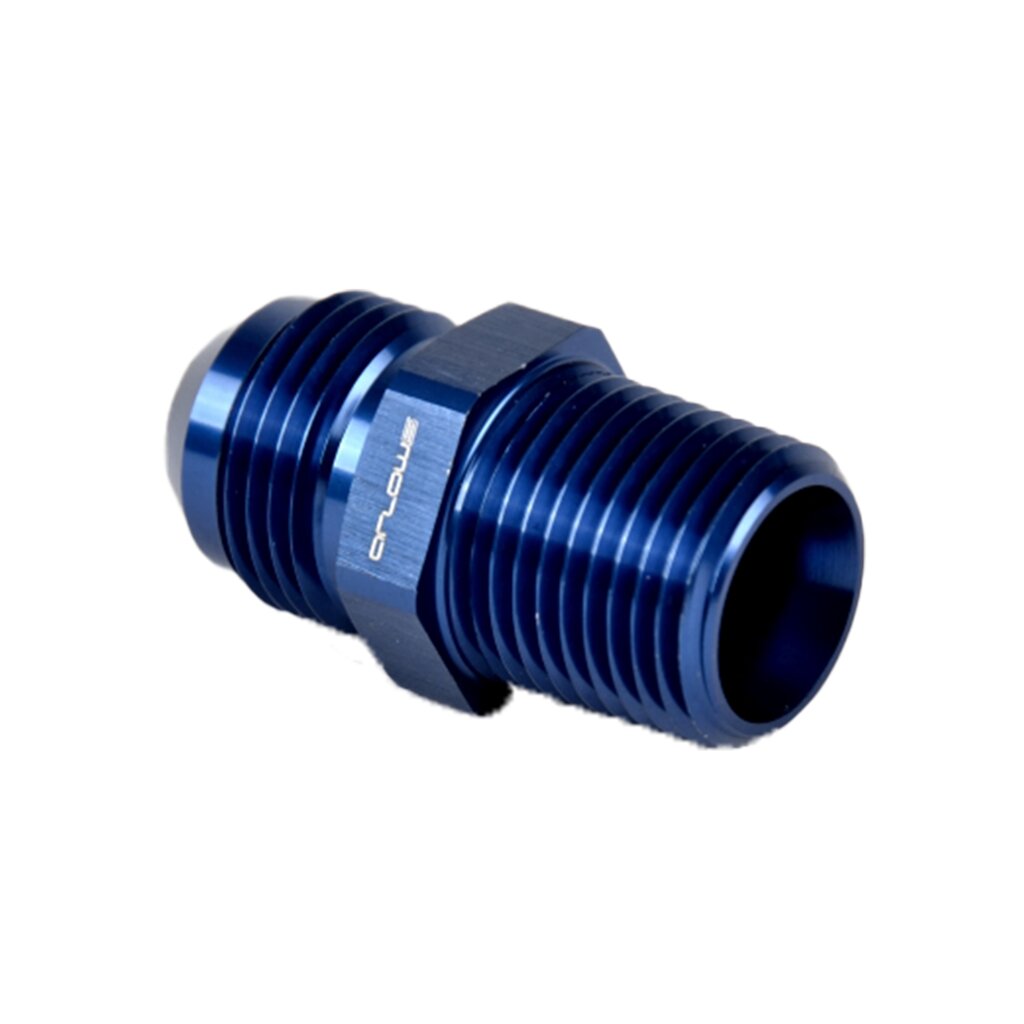

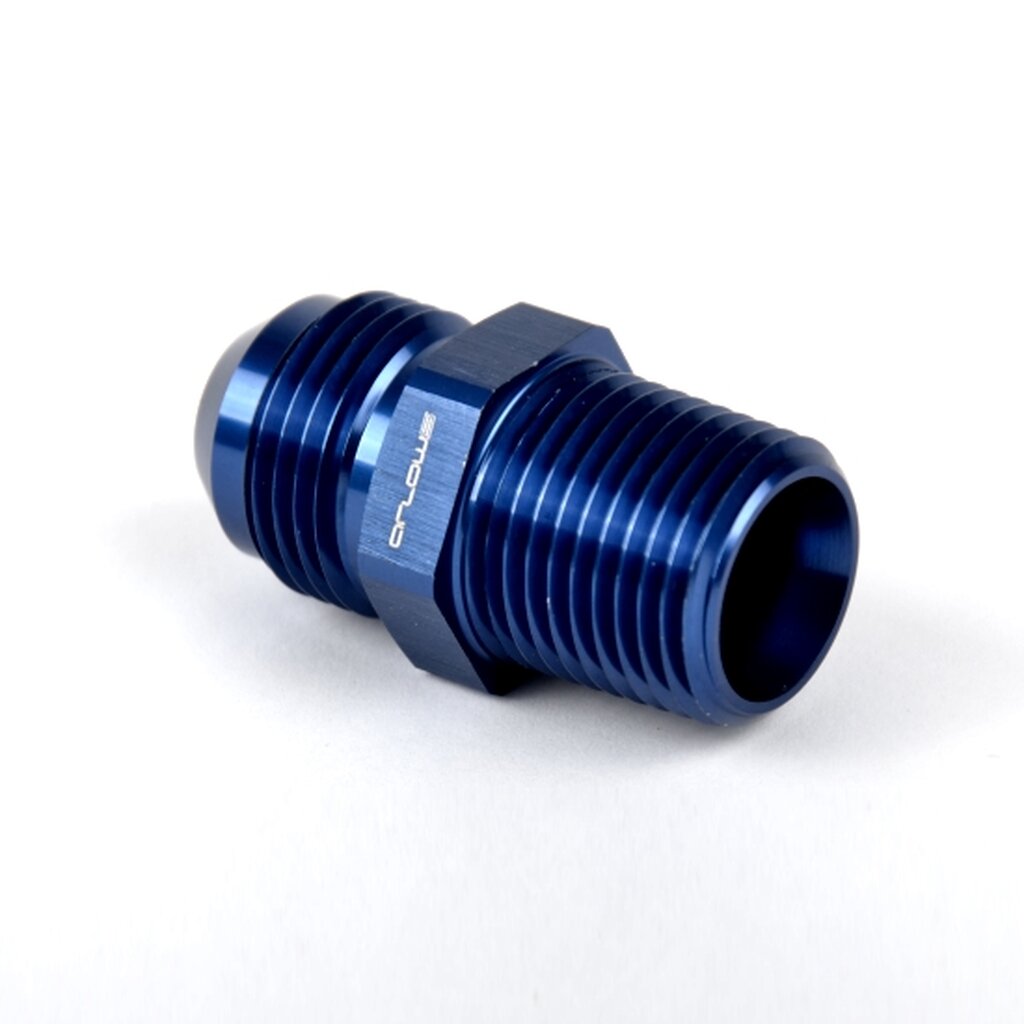

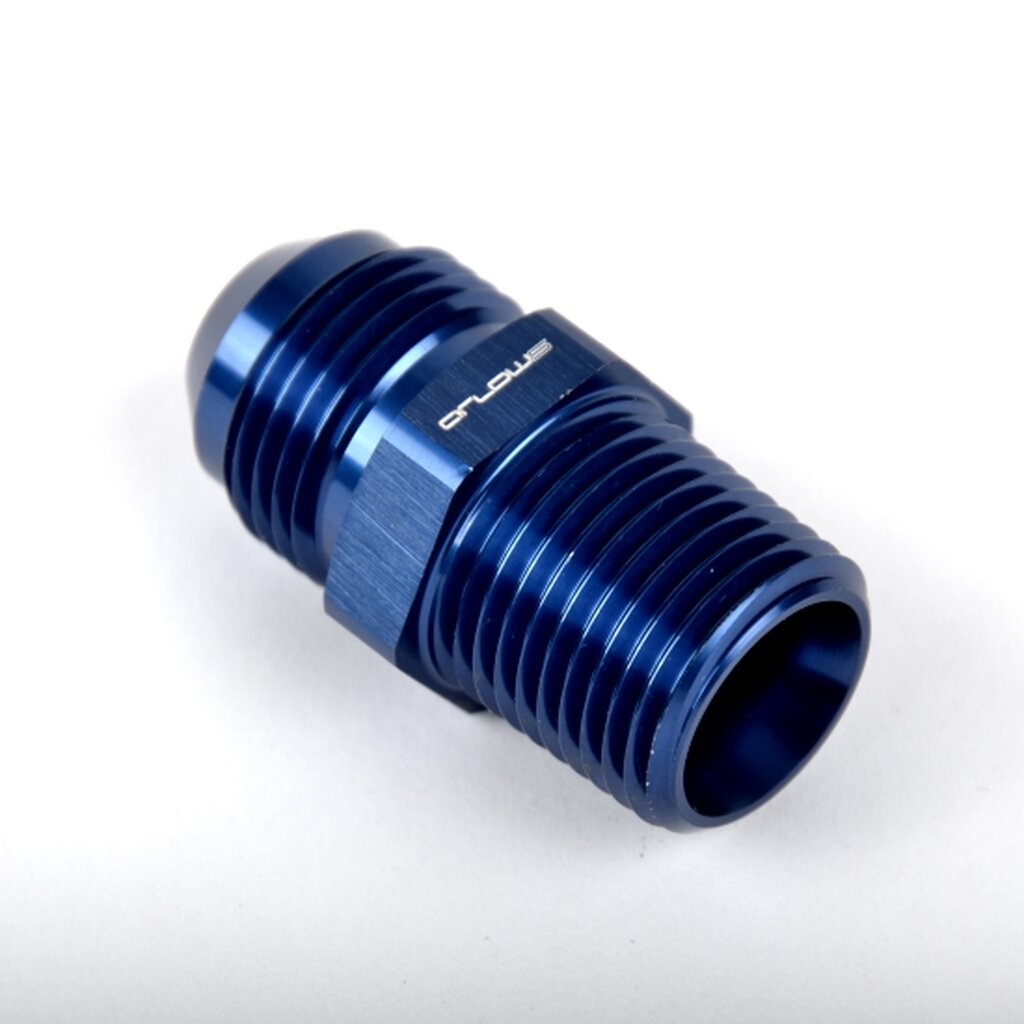

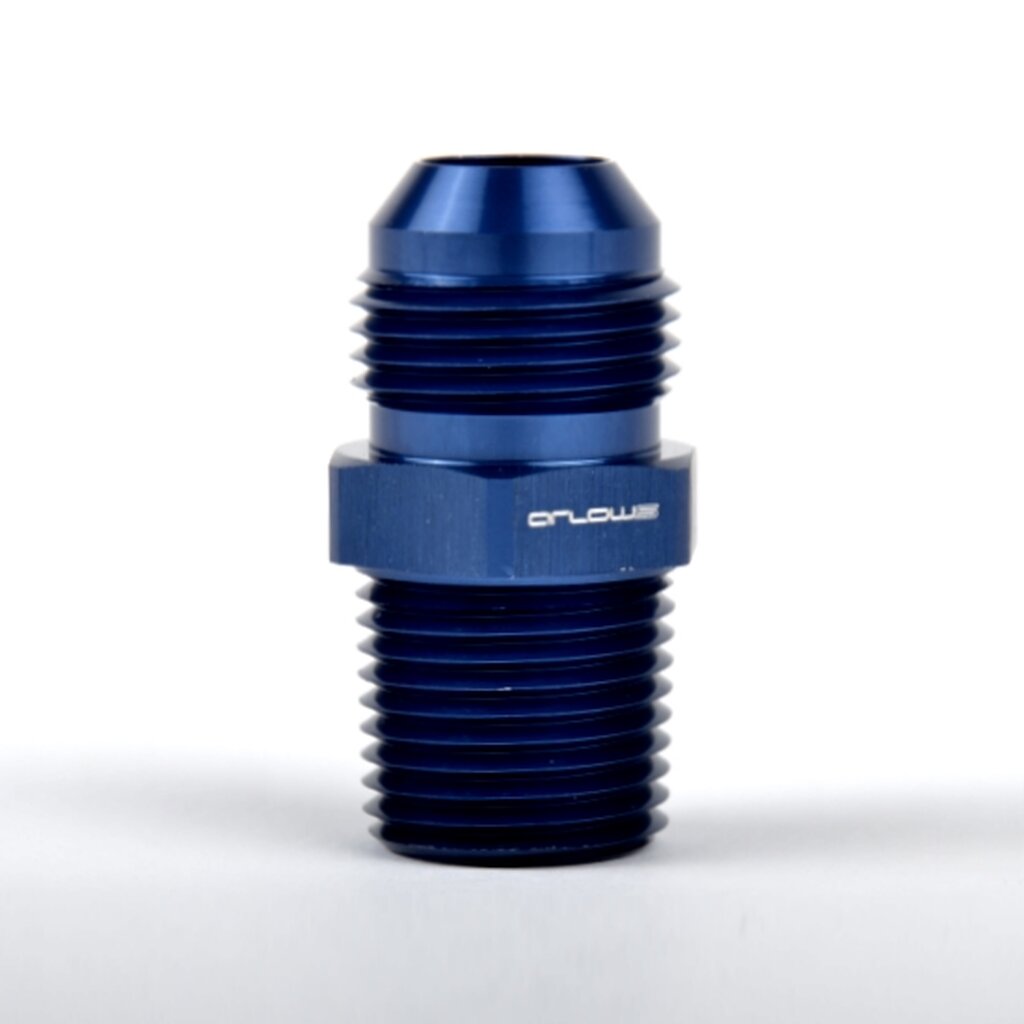

Arlows adapter 1/4" on Dash 8 (screw-in adapter)

Arlows Adapter 1/4" to Dash 8 ( Screw-in adapter )
Connect an inch-size port to an AN line.

Thread 1: 1/4"
Thread 2: Dash 8 ( 3/4 - 16 UNF )
Material: Anodised aluminium

The inch connection thread standard is not specified. Please confirm compatibility with the mating component before ordering.

5,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	5,66 €*
5	5,49 €*
10	5,31 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · AR1552

Arlows Adapter 1/4" to Dash 8 ( Screw-in adapter )

Connect an inch-size port to an AN line.
This screw-in adapter connects the stated inch-size port to an AN fitting. Selecting the correct part requires the thread standard and sealing geometry as well as the nominal size. This version: Thread 1: 1/4". Thread 2: Dash 8 ( 3/4 - 16 UNF ).

Benefits at a glance

TWO CONNECTION FORMATS

The inch-size connection and AN size are listed for comparison with your existing components.

ALLOW FOR CLEARANCE

The design helps you plan the connection position and the following hose route.

Technical specifications

Thread 1	1/4"
Thread 2	Dash 8 ( 3/4 - 16 UNF )
Material	Anodised aluminium
SKU	AR1552

The inch connection thread standard is not specified. Please confirm compatibility with the mating component before ordering.

Applications

For custom line assemblies with a matching inch-size port. Before using it in oil or fuel plumbing, check every component for compatibility with the fluid, pressure and temperature.

Installation & notes

First confirm the thread standard and sealing geometry of the inch-size side. Use approved NPT thread sealant only if NPT is confirmed. For other thread types, use their specified sealing arrangement. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.

Common question

Does an inch size automatically mean NPT?

No. A nominal size such as 1/8 inch does not identify the thread standard. NPT, BSP and other threads must not be combined based on nominal size alone.

Complete your line assembly

Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	INCH THREADS
SKU:	AR1552

Item information	Value
Angle:	Straight
Thread:	Dash 8
Item weight:	0,10 kg
