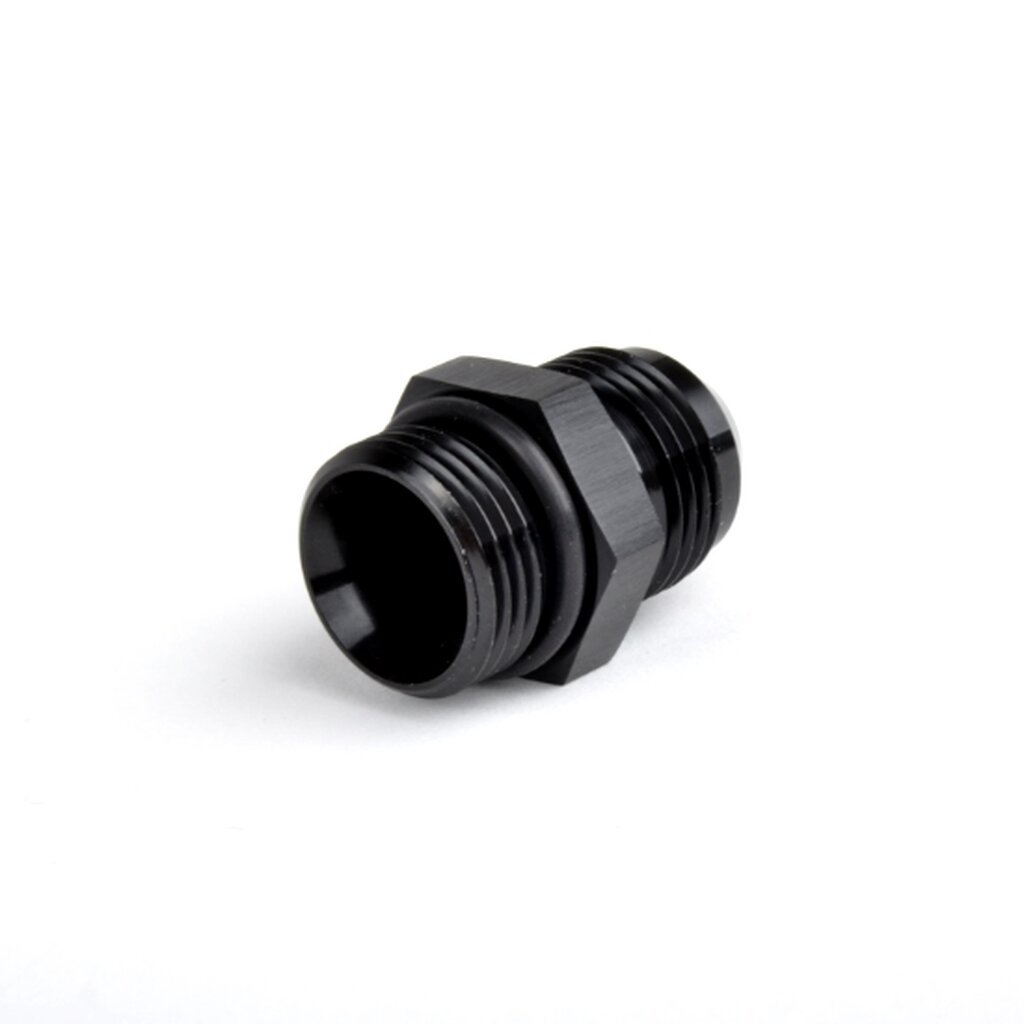

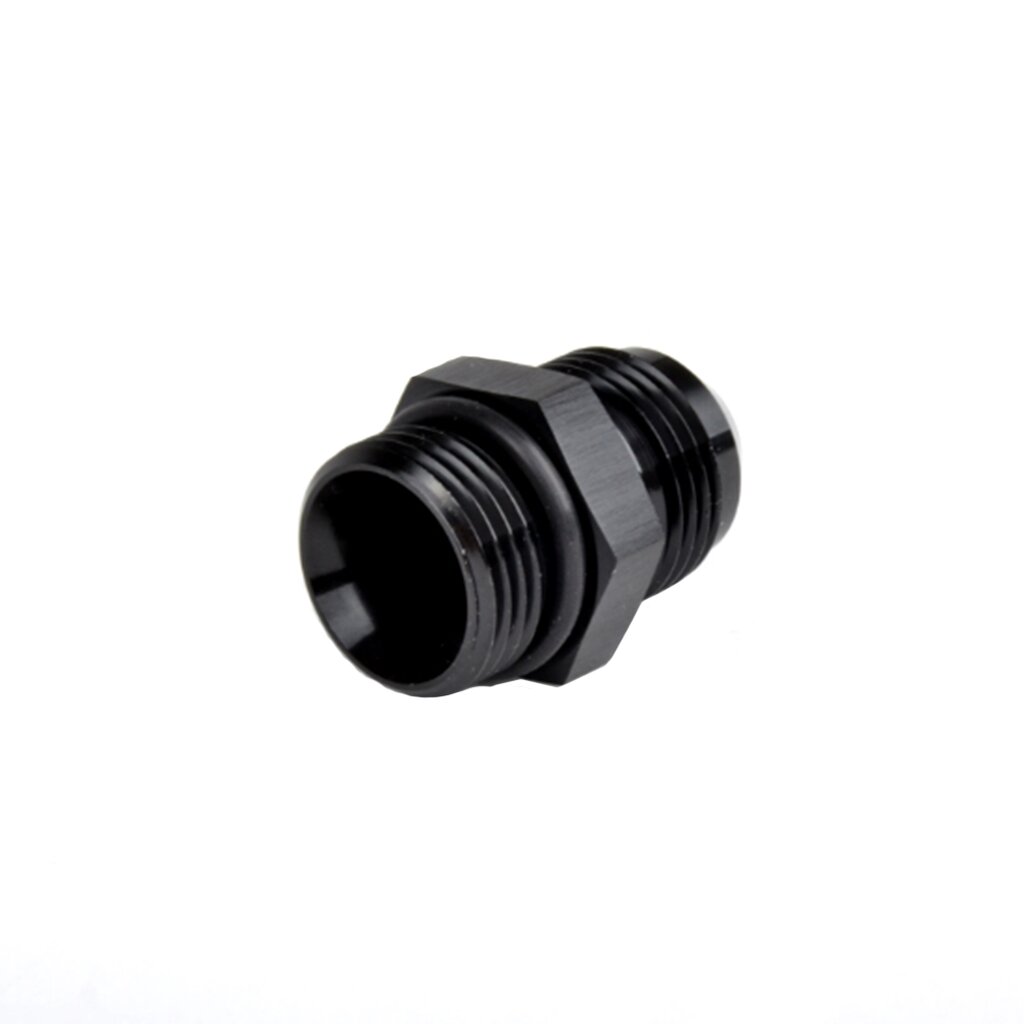

Arlows adapter 7/8-14 UNF (Dash 10) on Dash 6 (screw-in adapter) black

Arlows adapter 7/8-14 UNF (Dash 10) on Dash 6 (screw-in adapter) black

Arlows Adapter 7/8 - 14 UNF ( Dash 10 ) to Dash 6 ( Screw-in adapter ) Black
Join a UNF port to an AN flare connection.

Thread 1: 7/8 - 14 UNF ( Dash 10 ) male
Thread 2: Dash 6 male
Material: Aluminium
Colour: Black anodised

6,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	6,23 €*
5	6,04 €*
10	5,84 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · AR7523

Arlows Adapter 7/8 - 14 UNF ( Dash 10 ) to Dash 6 ( Screw-in adapter ) Black

Join a UNF port to an AN flare connection.
This adapter combines a male UNF thread with a sealing face below the hexagon and a male AN connection with a conical sealing face. It joins two different connection geometries. This version: Thread 1: 7/8 - 14 UNF ( Dash 10 ) male. Thread 2: Dash 6 male.

Benefits at a glance

TWO SEALING GEOMETRIES

The port side and AN side are designed for different sealing faces.

CHECK EACH THREAD

Both connections are listed individually to help avoid mismatches.

Technical specifications

Thread 1	7/8 - 14 UNF ( Dash 10 ) male
Thread 2	Dash 6 male
Material	Aluminium
Colour	Black anodised
SKU	AR7523

Applications

For compatible UNF ports designed to seal below the hexagon and a matching AN fitting on the other side.

Installation & notes

Install metric or straight port threads with the seal required by the sealing face. Thread tape does not replace that seal. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.

Common question

Is this automatically an ORB adapter?

The product information describes a sealing face below the hexagon. Confirm the exact seal type and port geometry rather than assuming that it is ORB.

Complete your line assembly

Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	UNF THREAD
SKU:	AR7523

Item information	Value
Thread:	Dash 10 Dash 6
Angle:	Straight
Item weight:	0,10 kg
