Arlows adapter / t-piece 1/2" NPT on 2 x Dash 10 "male"

Arlows Adapter/T-piece 1/2" NPT to 2x Dash 10 " male
Split one NPT connection into two AN connections.

Thread: 2x Dash 10 ( 7/8 - 14 UNF )/1x 1/2" NPT
Material: Anodised aluminium

16,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	15,83 €*
5	15,34 €*
10	14,84 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · AR3737

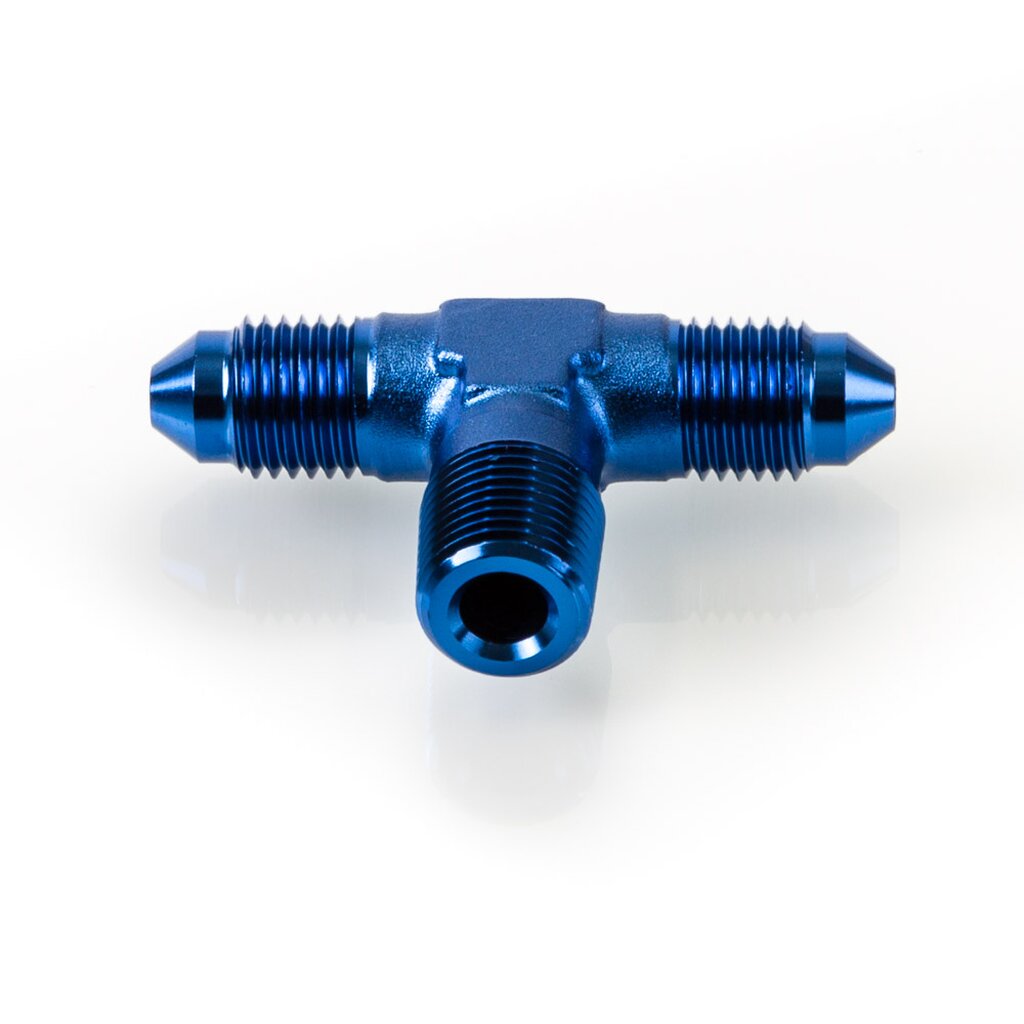

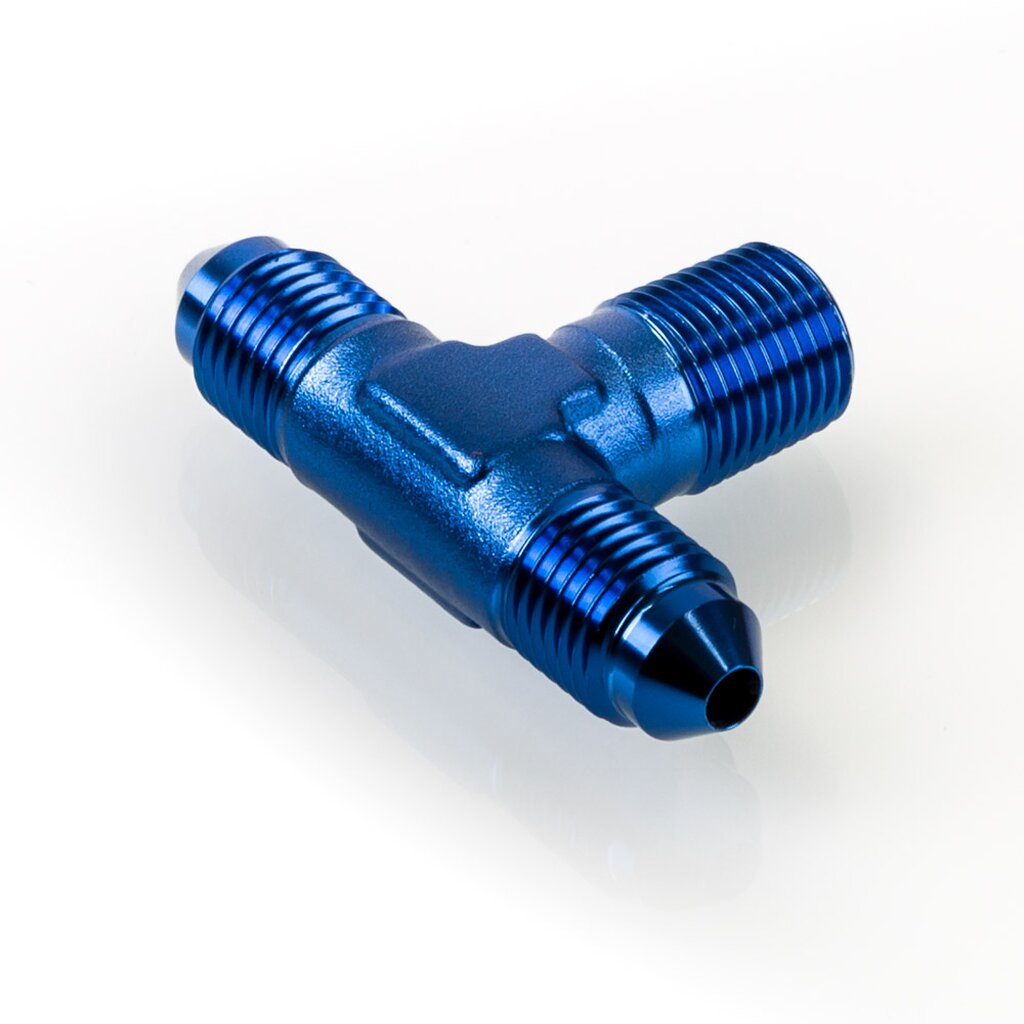

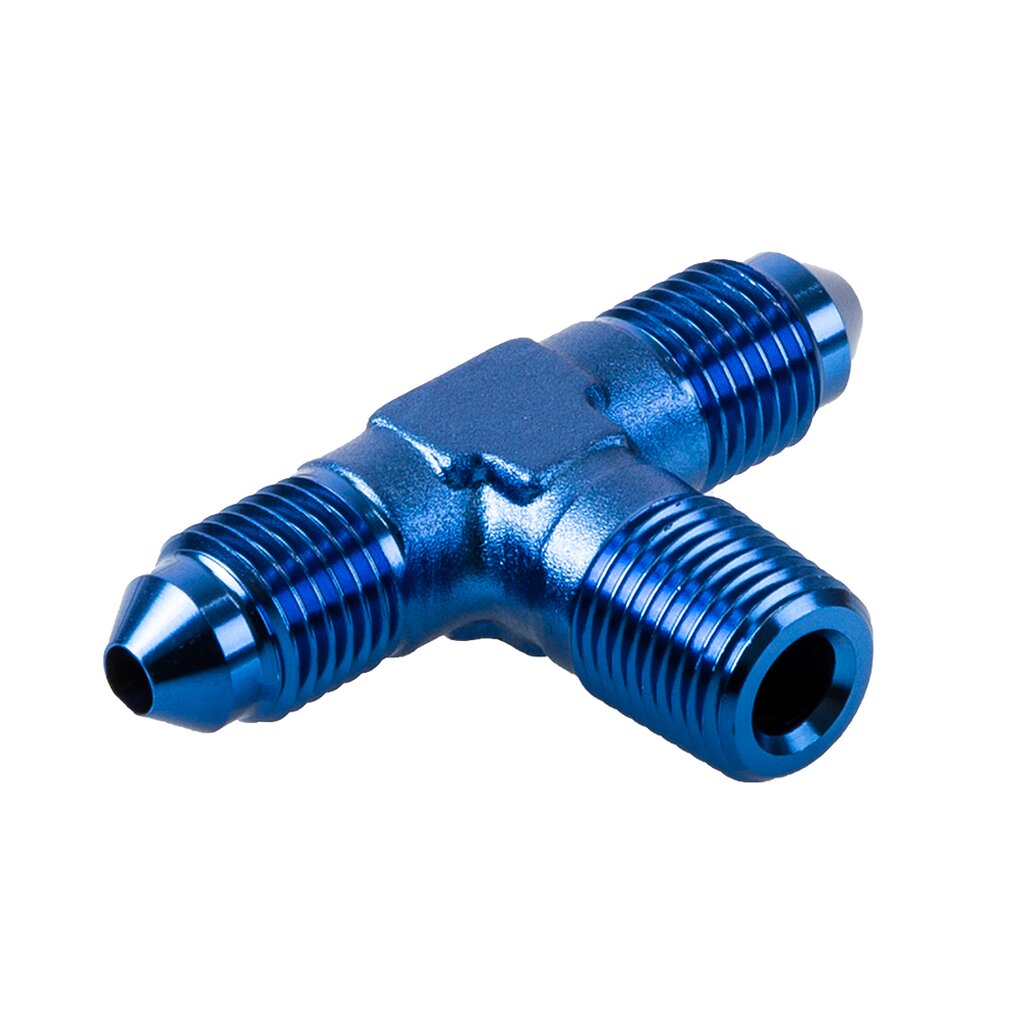

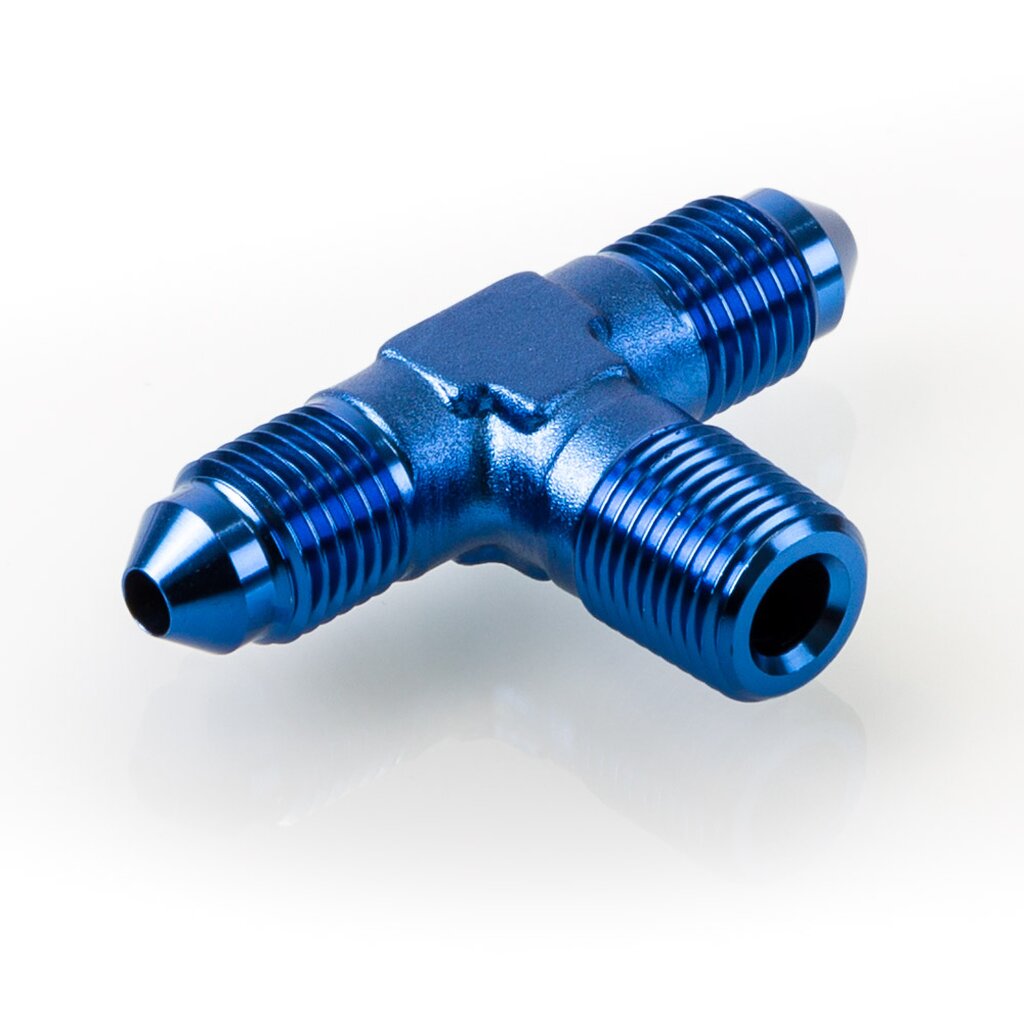

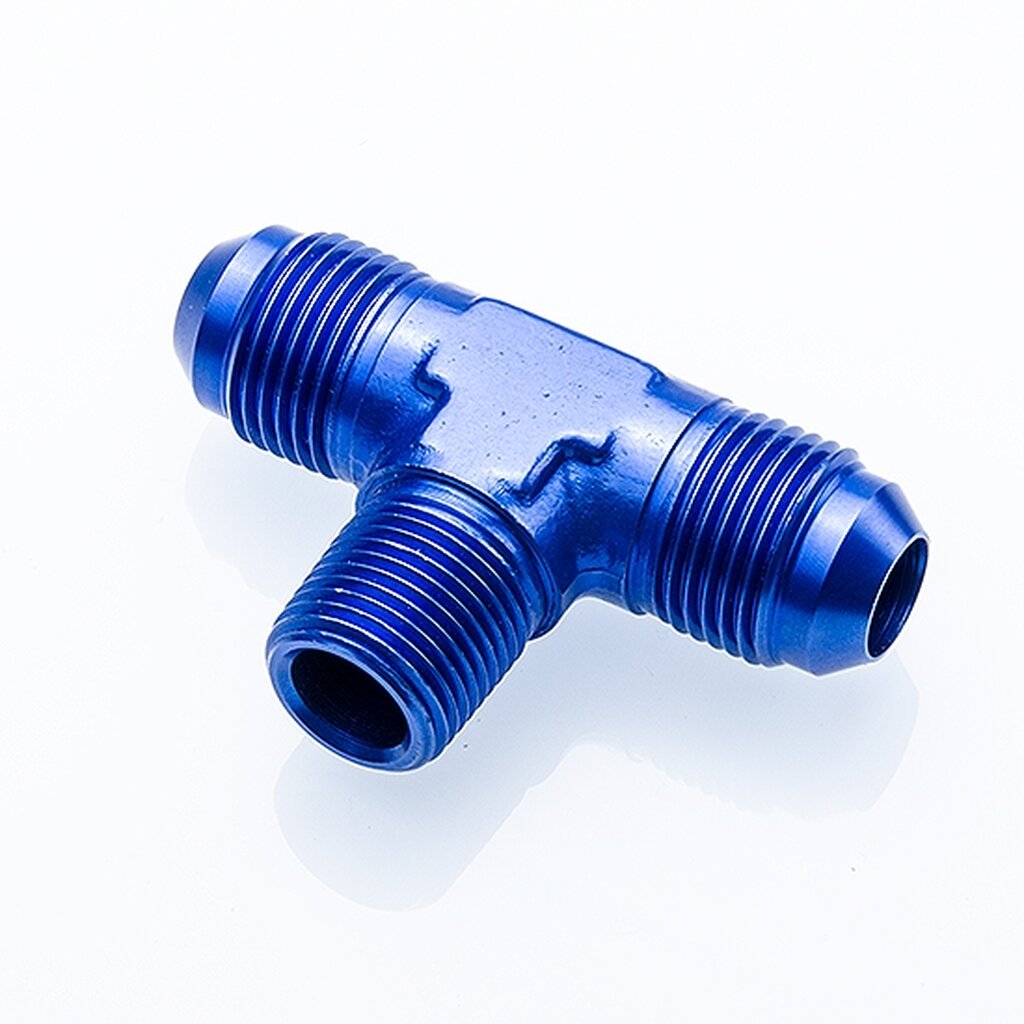

Arlows Adapter/T-piece 1/2" NPT to 2x Dash 10 " male

Split one NPT connection into two AN connections.
This aluminium T-piece combines an NPT connection with two male AN connections. The branch layout helps you plan two line routes from a suitable port. This version: Thread: 2x Dash 10 ( 7/8 - 14 UNF )/1x 1/2" NPT.

Benefits at a glance

THREE CONNECTIONS

One NPT connection and two AN connections are combined in one component.

T-SHAPED BRANCH

The design provides two branches from a shared connection point.

Technical specifications

Thread	2x Dash 10 ( 7/8 - 14 UNF )/1x 1/2" NPT
Material	Anodised aluminium
SKU	AR3737

Applications

For custom line branches with matching NPT and AN components. Check required flow and approval for fluid, pressure and temperature at system level.

Installation & notes

Assemble NPT threads using fluid-compatible thread sealant approved by the component manufacturer. Keep excess sealant out of the flow path. Do not back off a tightened connection to adjust its orientation. Check the completed connection for leaks. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.

Common question

Do both connection types use the same seal?

No. NPT needs suitable thread sealing. The AN side relies on the intended flare sealing face.

Complete your line assembly

Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.

EXPLORE AN COMPONENTS >

Manufacturers:	Arlows
Category:	INCH THREADS
SKU:	AR3737

Item information	Value
Thread:	Dash 10
Colour:	Blue
Version:	Adapter
Angle:	T-Piece
Item weight:	0,10 kg
