Arlows connector Dash 12 - 90° ( 1/16 - 12UNF; Female )

Arlows Adapter AN-12 - 90°

A compact 90° connection for restricted spaces.

AN size: AN-12
Angle: 90°
Material: Aluminium
Finish: Anodised
Thread dimensions: Confirm before ordering

Please note: The supplied inch thread dimensions for AN-12 are inconsistent. Confirm the actual thread dimensions before ordering.

16,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	15,83 €*
5	15,34 €*
10	14,84 €*

Available immediately
Delivery time: 1 - 2 Workdays

Description
Product tags

ARLOWS · COMPACT ELBOW ADAPTER

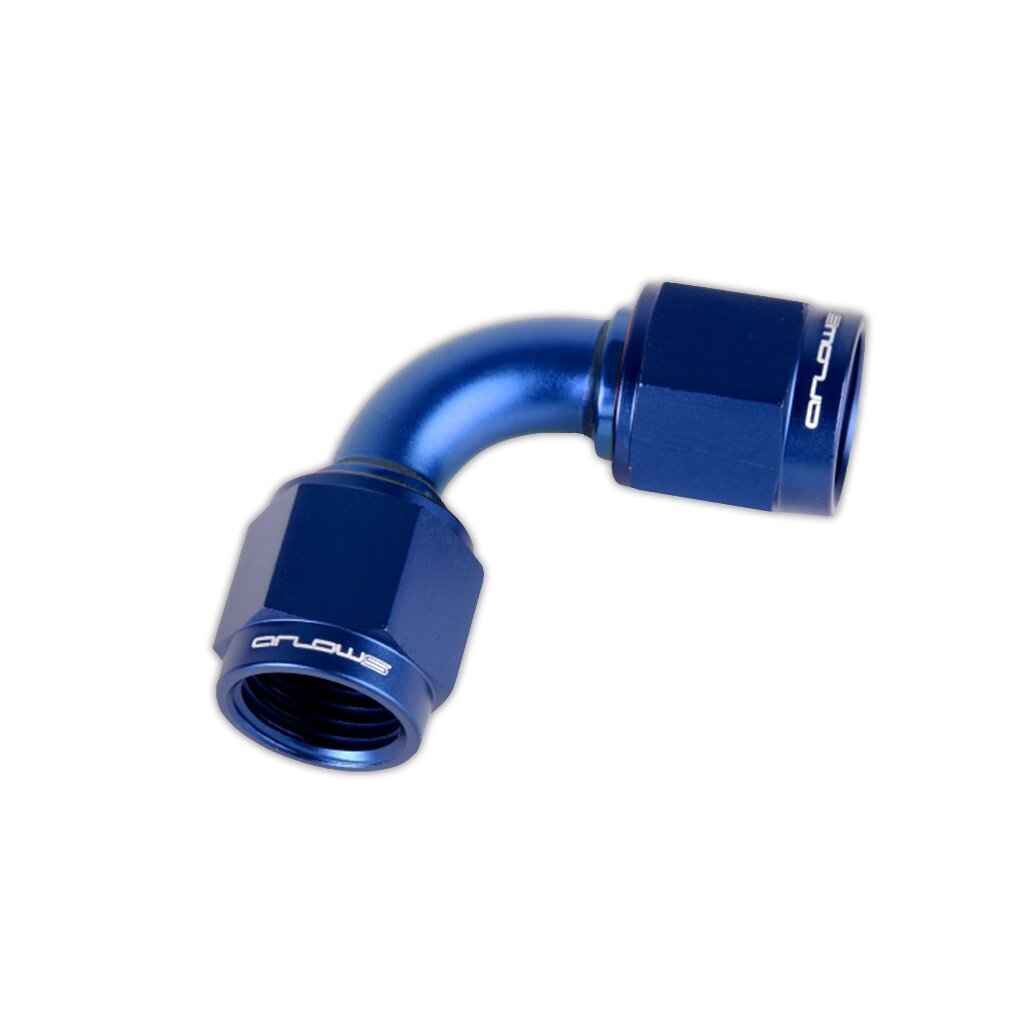

Arlows Adapter AN-12 - 90°

A compact 90° connection for restricted spaces.
This CNC-machined aluminium adapter joins two compatible male AN fittings through a 90° bend. The product description identifies it as more compact than the High Flow version.

This version: AN-12, 90°.

Key benefits

COMPACT DESIGN

The compact version helps when planning a connection close to surrounding components.

90° TURN

The bend establishes the direction at the connection and helps organise the following line route.

ALUMINIUM

The aluminium component supports a weight-conscious plumbing layout.

Technical specifications

Manufacturer	Arlows
SKU	AR12740
AN size	AN-12
Component	Compact elbow adapter
Angle	90°
Material	Aluminium
Finish	Anodised
Thread dimensions	Confirm before ordering
Connections	2× female
Manufacture	CNC-machined

Please note: The supplied inch thread dimensions for AN-12 are inconsistent. Confirm the actual thread dimensions before ordering.

Applications

For compatible AN connections requiring two female ends in limited space. Check the actual installed dimensions of the component.

Installation & notes

Check clearance for the fitting, hose and tools. Start mating components without cross-threading and hold the adapter while tightening. The connected lines must not load or distort the fitting. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.

Permitted operating conditions depend on the ratings of every component in the assembly.

Common question

Does AN size alone confirm compatibility?

No. Thread configuration, sealing face and installation clearance must also match the mating component.
