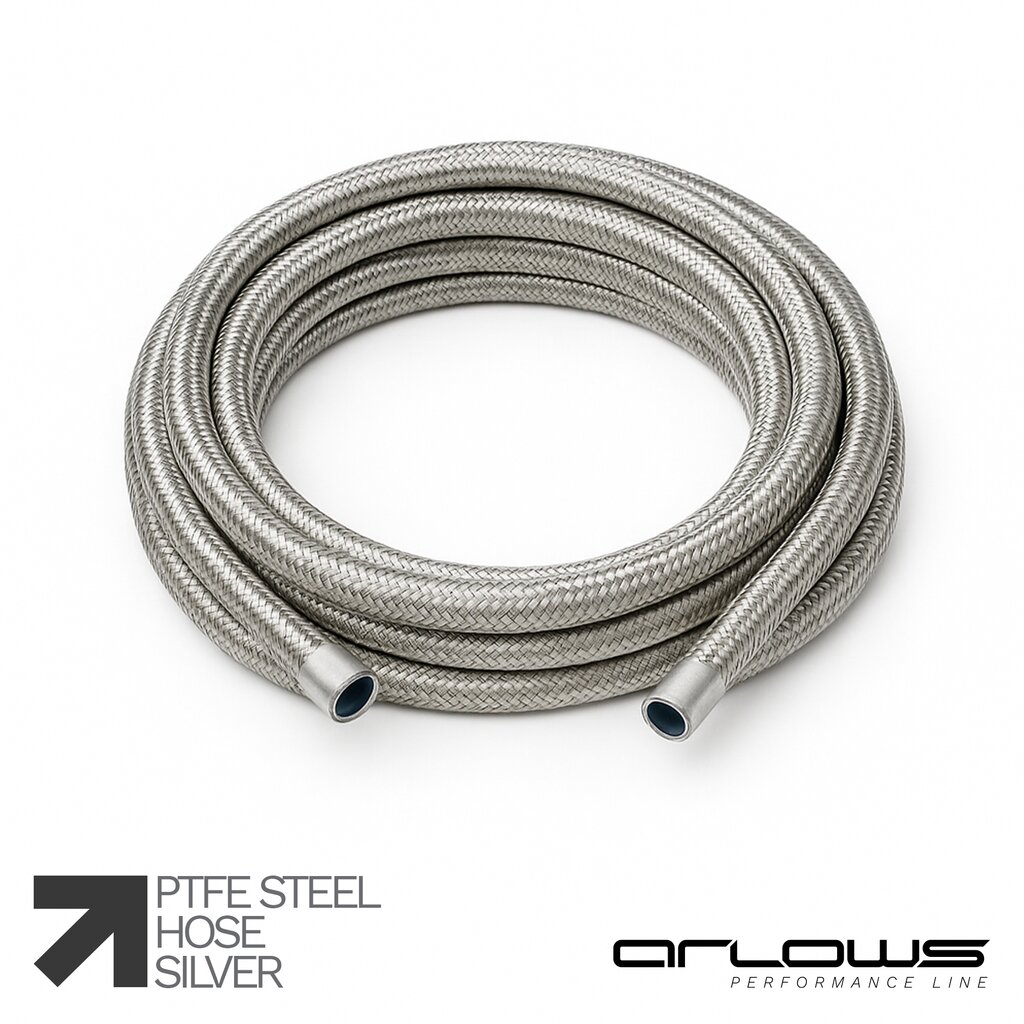

ARLOWS 1 METER PTFE HYDRAULIC HOSE WITH STAINLESS STEEL BRAID
Flexible. Extremely durable.
Stainless steel braid against stones & abrasion.
The Arlows PTFE Hydraulic Hose with Stainless Steel Braid is the premium solution for DIY line building. The highly flexible PTFE inner hose combined with a robust stainless steel braid offers maximum resistance to stone chips, abrasion and UV radiation.
Perfectly suited for E85, gasoline, diesel, methanol, oil, air and many other media. Temperature range from -50 °C to +230 °C. The silver stainless steel braid provides maximum durability and a professional look.
Your advantages at a glance:

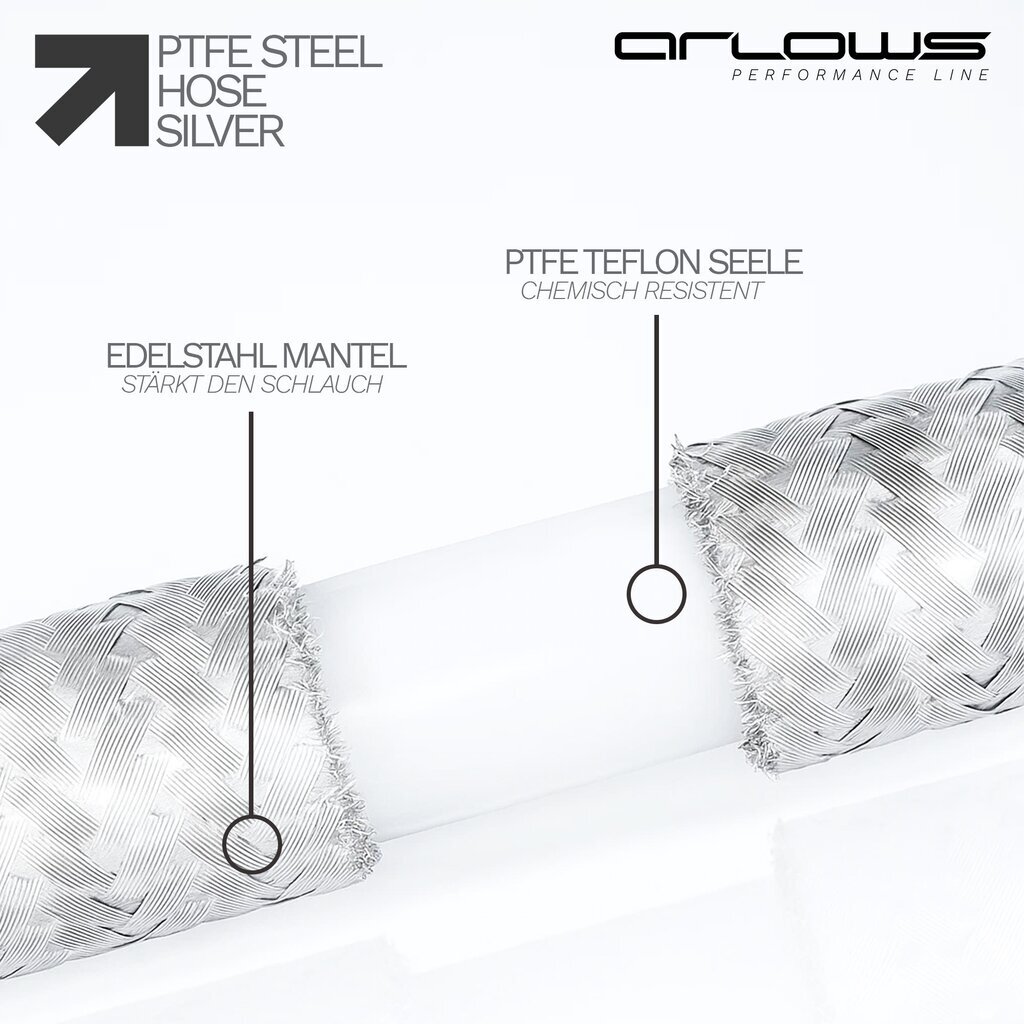

- PTFE inner hose with stainless steel braid
- High protection against stone chips, abrasion and UV radiation
- Extremely flexible and pressure-resistant
- Temperature range -50 °C to +230 °C
- Suitable for E85, gasoline, diesel, methanol, oil, air etc.
- 1 meter – simply order the required quantity
Technical Specifications
| Dash | Thread | ID | OD | Operating Pressure | Burst Pressure |
|---|---|---|---|---|---|
| Dash 4 | 7/16 - 20 UNF | 5.56 mm | 11.13 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16 - 18 UNF | 8.73 mm | 13.89 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4 - 16 UNF | 11.12 mm | 16.28 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8 - 14 UNF | 14.27 mm | 20.24 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16 - 12 UNF | 17.47 mm | 23.82 mm | 2900 PSI | 6000 PSI |
Note: Matching PTFE fittings are sold separately.
Perfect match: The matching PTFE hydraulic fittings
To the matching PTFE fittings →| Manufacturer: | Arlows |
| Category: | ON / DASH HOSES |
| Item number: | AR7410-1 |
| Product weight: | 0,10 Kg |
