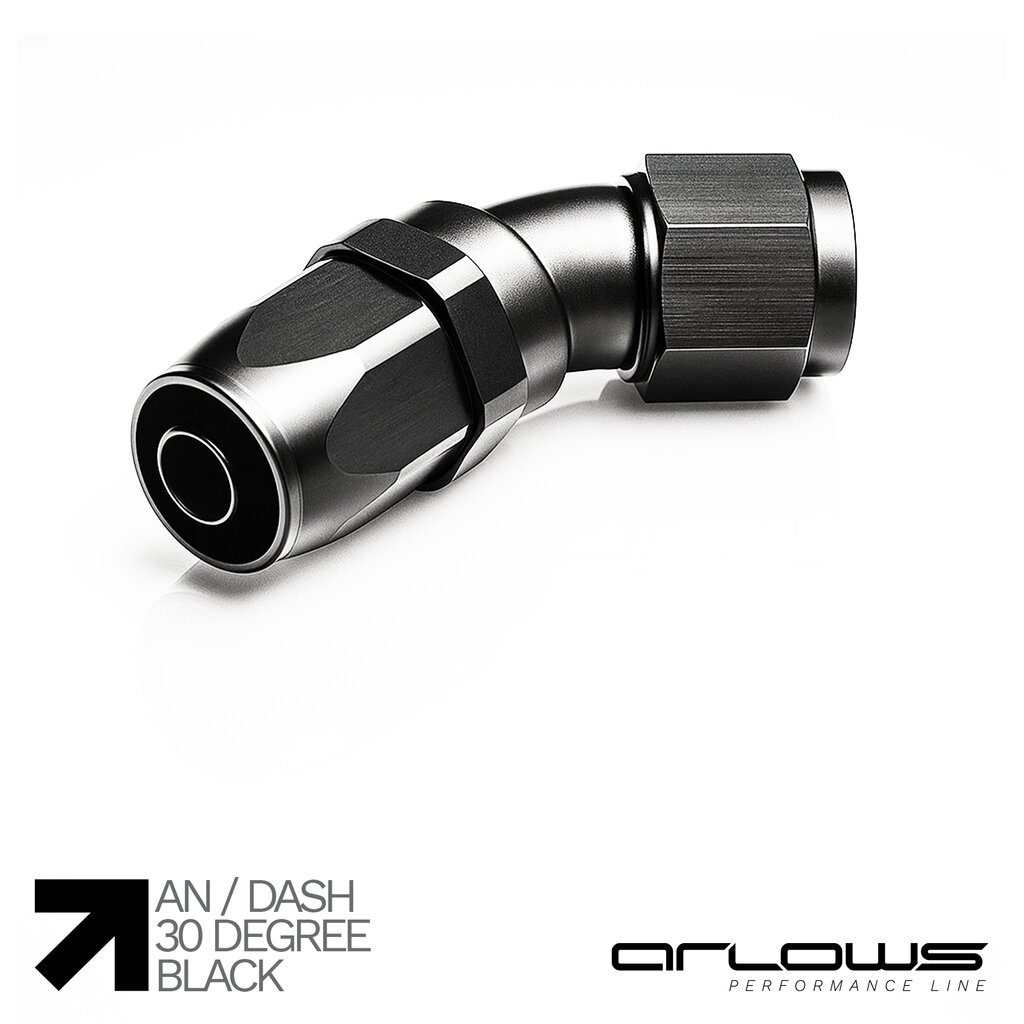

Arlows Aluminium AN Dash Fitting 30°
A light bend. No stress in tight space.
Anodized aluminium fitting with a 30° body for classic steel braided hose. Pick colour and Dash size above. For fuel, oil, cooling and hydraulics where straight is too stiff and 45° is too much. For PTFE hose use PTFE fittings.
30° ANGLE
Gentle turn. The line stays free without a hard 90° kink at the joint.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above.
AN DASH
Fits common steel flex. Pick size above, threads in the table.
TIGHT BAY
Between frame, cooler and block, where straight will not sit and 45° swings too far.
Use cases
- Fuel and oil: rail, cooler, catch can, when the line only needs a light bend
- Cooling and hydraulics: short turn at the stub
- Car, van, motorsport: clean routing without hose pinch at the fitting
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8370
- Material: aluminium, anodized
- Angle: 30°

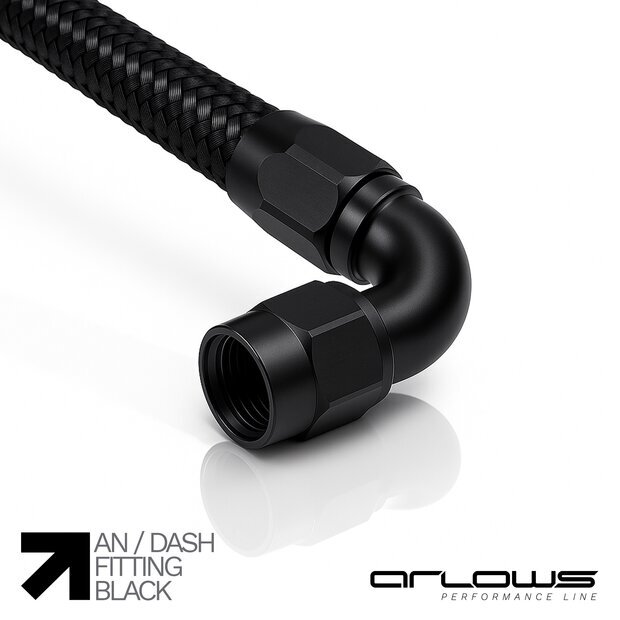

- Hose: classic steel flex AR8394, not PTFE core
Fitment

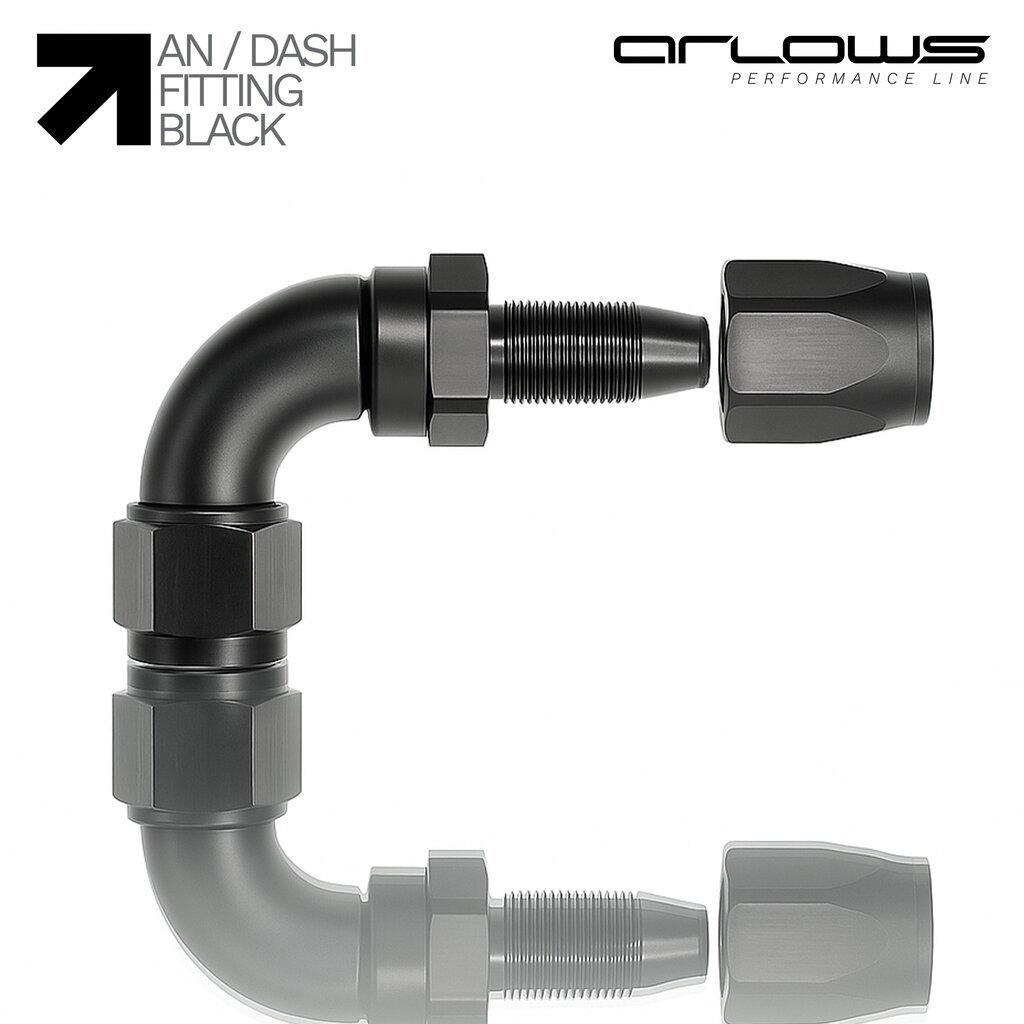

Cut the hose square, assemble the fitting per the instructions. Dash size must match hose and counterpart. For PTFE Teflon hose (AR9106 / AR9107) use PTFE fittings. Straight, 45°, 90° and 180° are separate items.
| Manufacturer: | Arlows |
| Category: | AN / DASH FITTINGS |
| Item number: | AR6041-1 |
| Angle: | Straight |
| Thread: | Dash 4 Dash 12 |
| Product weight: | 0,10 Kg |
