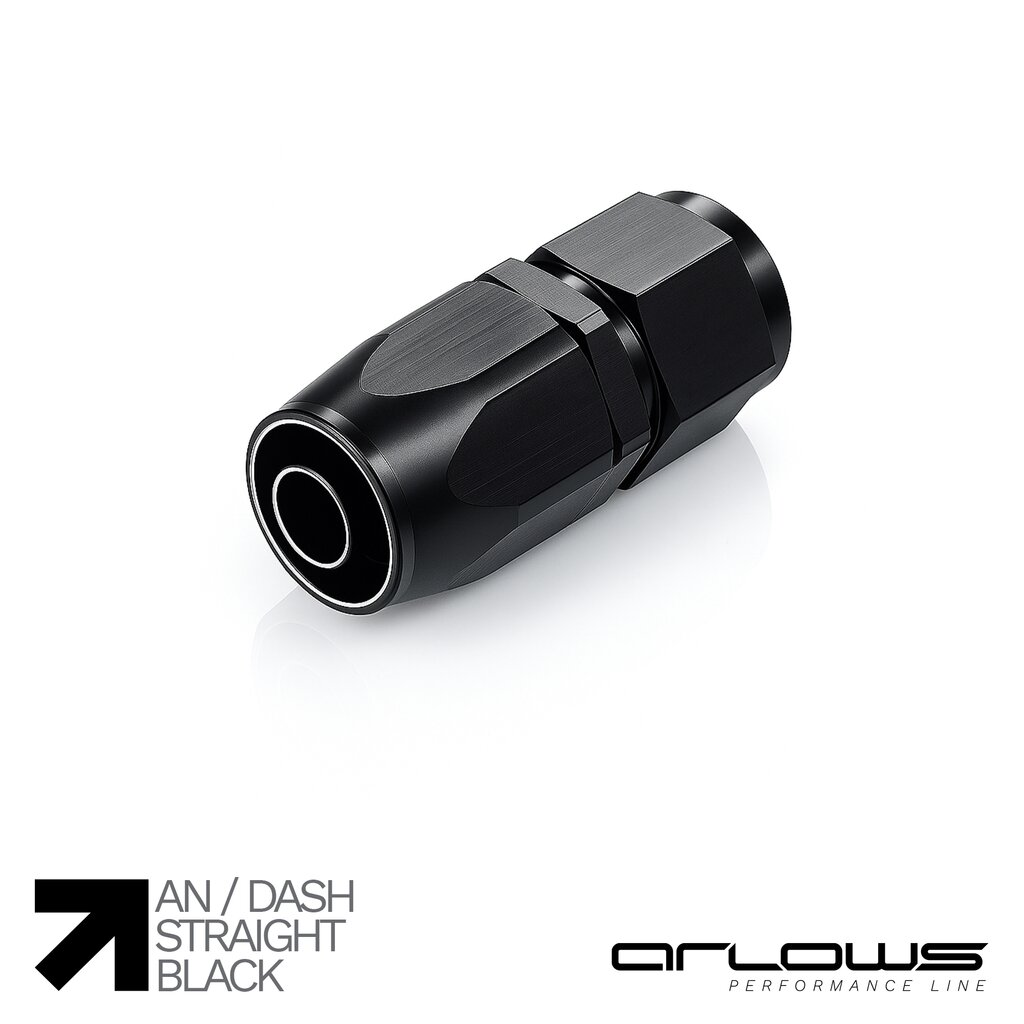

ALU AN STRAIGHT AR8369
Arlows Aluminium AN Dash Fitting Straight
Straight out. Light. Tight.
Anodized aluminium fitting in a straight body for classic steel braided hose. Black or blue, Dash 4 to Dash 20. For fuel, oil, cooling, hydraulics and air. For PTFE hose use PTFE fittings.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above: black or blue.
STRAIGHT BODY
Shortest path, tight space, a direct line with no bend.
AN DASH
Fits common steel flex. Pick size above, threads in the table.
SEALS UNDER LOAD
Precision machine work for vibration proof joints on hose and counterpart.
Use cases
- Fuel: feed and return on steel flex, classic petrol systems
- Oil: oil cooler, pressure oil, catch can
- Cooling and hydraulics: water, power steering, auxiliary circuits
- Car, van, motorsport: visible line work, show setup
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8369
- Material: aluminium, anodized
- Colours: black, blue
- Angle: straight
- Hose: classic steel flex AR8394, not PTFE core
Fitment
Cut the hose square, assemble the fitting per the instructions. Dash size must match hose and counterpart. For PTFE Teflon hose (AR9106 / AR9107) use PTFE fittings, not this part. 30°, 45°, 90° and 180° bodies are separate items.
| Manufacturer: | Arlows |
| Category: | AN / DASH FITTINGS |
| Item number: | AR6666-1 |
| Angle: | Straight |
| Thread: | Dash 4 Dash 20 |
| Product weight: | 0,10 Kg |
