ALU AN 90° AR8373

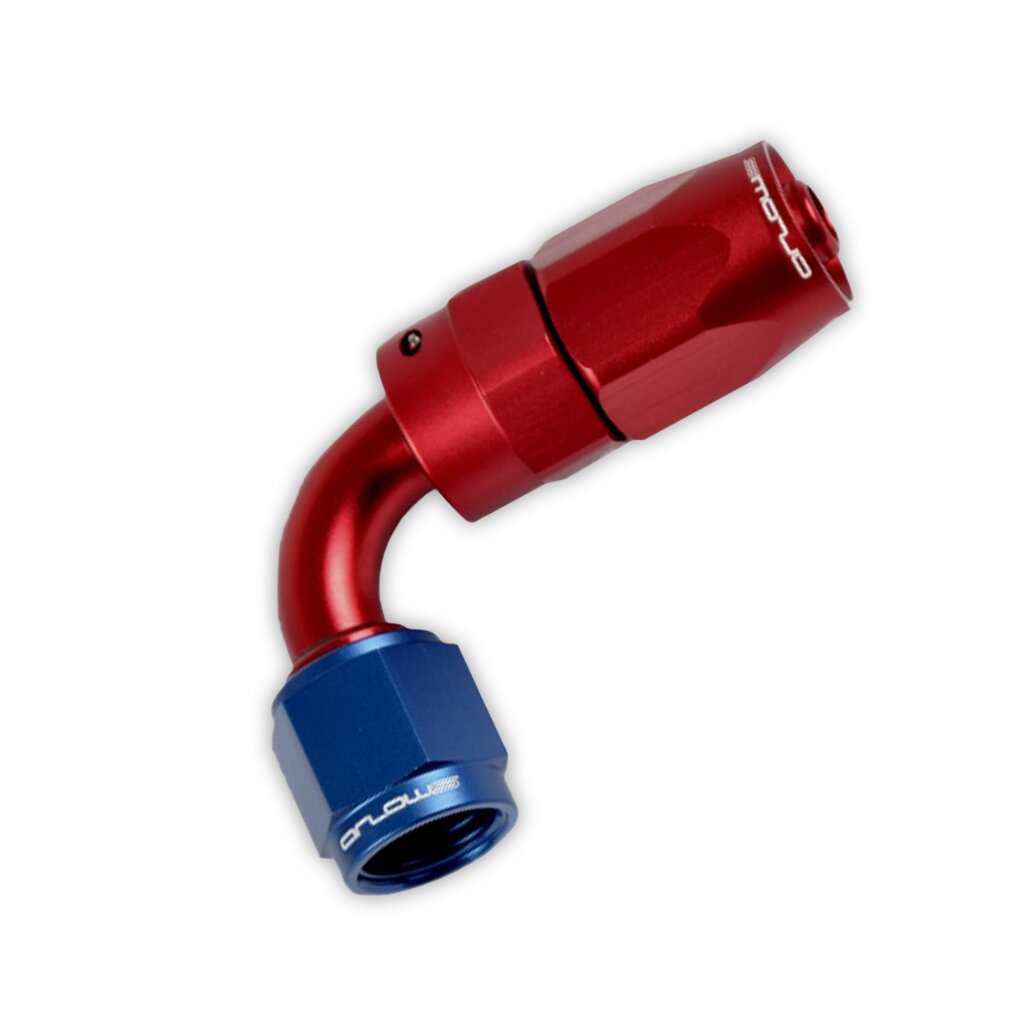

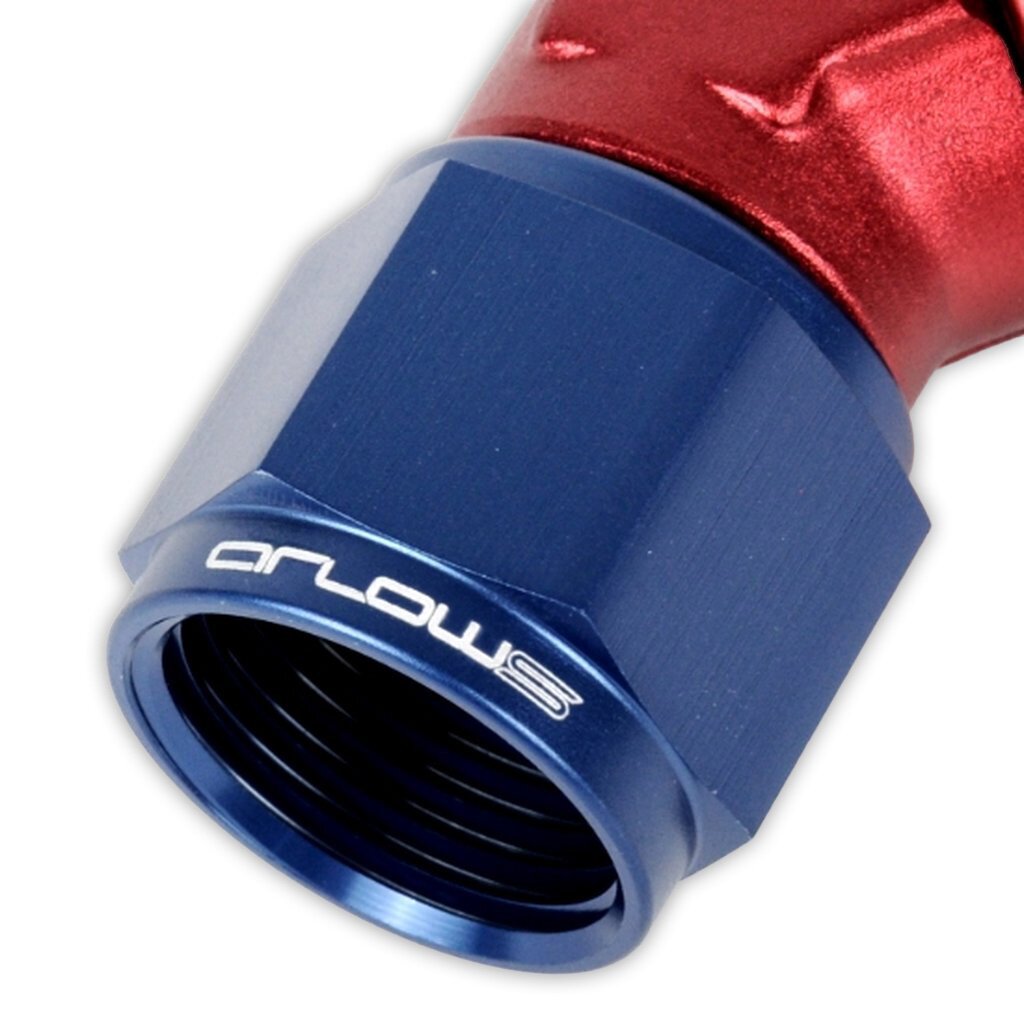

Arlows Aluminium AN Dash Fitting 90°

Right angle out. Less hose kink.
Anodized aluminium fitting with a 90° body for classic steel braided hose. Black or blue, Dash 4 to Dash 20. For fuel, oil, cooling and hydraulics when the line has to turn a corner. For PTFE hose use PTFE fittings. For less height pick the 90° block angle.

90° ANGLE

Full turn at the joint. The hose does not have to make the 90° itself.

ANODIZED ALU

Light, corrosion resistant, race look. Pick colour above: black or blue.

AN DASH

Fits common steel flex. Pick size above, threads in the table.

TIGHT BAY

At the block, cooler and frame, where the line must leave at a right angle.

Use cases

Fuel and oil: rail, oil cooler, filter, catch can
Cooling and hydraulics: stubs that leave the part at 90°
Car, van, motorsport: a clean corner without hose pinch at the fitting

Technical data

Dash	Thread	ID	OD
Dash 4	7/16-20 UNF	5.56 mm	11.13 mm
Dash 6	9/16-18 UNF	8.73 mm	13.89 mm
Dash 8	3/4-16 UNF	11.12 mm	16.28 mm
Dash 10	7/8-14 UNF	14.27 mm	20.24 mm
Dash 12	1 1/16-12 UNF	17.47 mm	23.82 mm
Dash 16	1 5/16-12 UNF	22.20 mm	30.50 mm
Dash 20	1 5/8-12 UNF	28.50 mm	35.81 mm

Part number: AR8373
Material: aluminium, anodized
Colours: black, blue
Angle: 90°
Hose: classic steel flex AR8394, not PTFE core

Fitment

Cut the hose square, assemble the fitting per the instructions. Dash size must match hose and counterpart. For PTFE Teflon hose (AR9106 / AR9107) use PTFE fittings. Straight, 30°, 45°, 180° and 90° block angle are separate items.
