Arlows aluminium pipe bend 30° medium radius AlMgSi0.5
Compact 30° bend for tight installations. Consistent wall thickness, weldable, no weak spots.
Mandrel bend in AlMgSi0.5 (EN AW-6060). The medium radius keeps the flow section in the curve. 3 mm wall thickness throughout. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.
Why this bend?
30 DEGREE
Fine angle for corrections in the piping. Formed from one piece, or cut smaller if the angle is too large.
3 MM WALL
Consistent wall thickness with no thin spots in the bend. Pressure resistant for charge air and intake.
WELDABLE

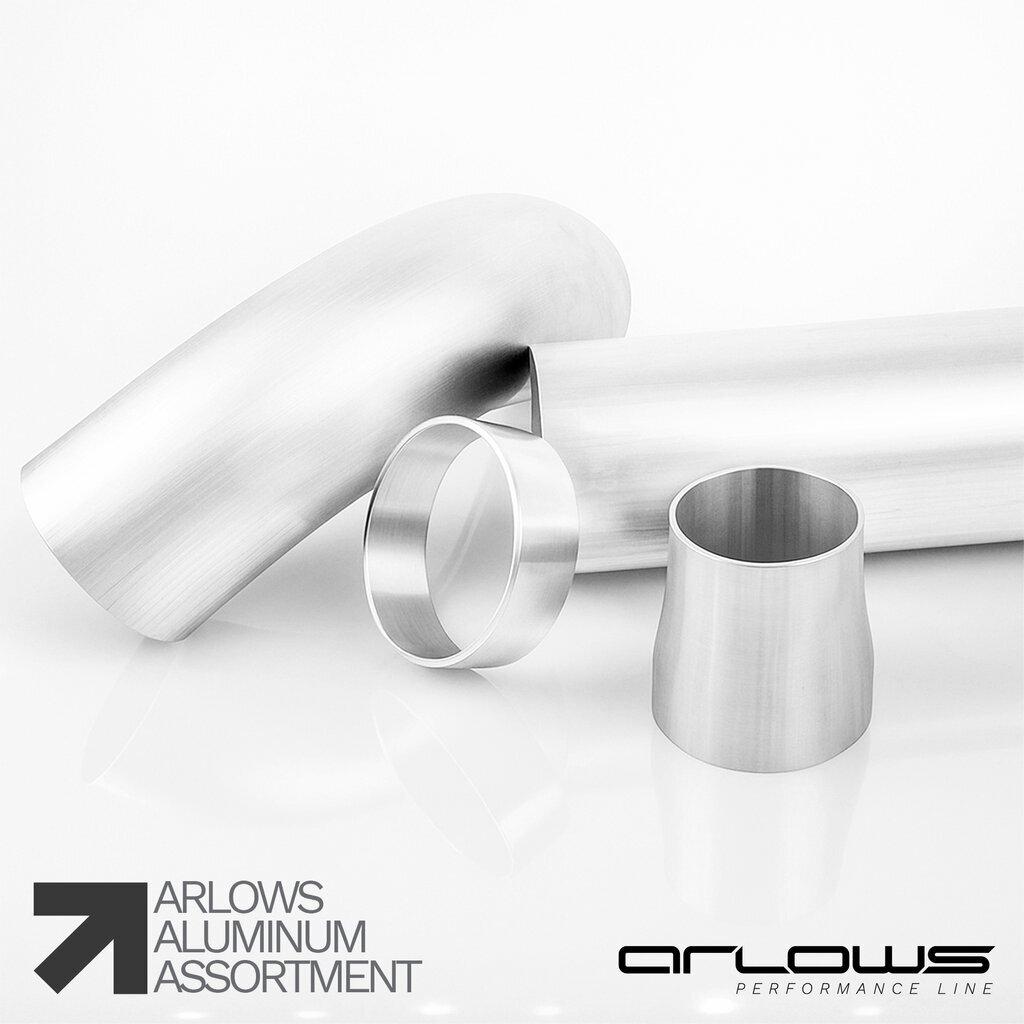

AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.
TIGHT SPACE
Medium radius for engine bay and duct. Less turbulence than a tight bend, more compact than a wide one.
Use cases
- Charge air piping and charge pipe routing
- Intake tubes and cold air routing
- Custom hard lines for water or oil coolers
- Exhaust in motorsport (watch temperature range)
- Not for fuel without material check
Technical data
| Material | Aluminium AlMgSi0.5 (EN AW-6060) |
| Angle | 30° |
| Radius | medium radius (depends on diameter) |
| Wall thickness | 3 mm throughout |
| Diameter | see variant selection (outer diameter) |
| Processing | weld, saw, deburr |
Fitment
Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.
| Manufacturer: | Arlows |
| Category: | ALUMINUM PIPES |
| Item number: | AR8723-50 |
| Product weight: | 0,10 Kg |
