Arlows Aluminum Angle 45° Mid Radius (AlMgSi0,5 Aluminum Angle)

Arlows Aluminum Angle 45° Mid Radius (AlMgSi0,5 Aluminum Angle)

Arlows aluminium pipe bend 45° medium radius ( AlMgSi0,5 aluminium bend )

diameter

from

15,92 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	16,97 €*
3	16,97 €*
5	16,44 €*
10	15,92 €*

This item has variations. Please select the requested variation.

Available immediately

Description
Product tags

45° · MEDIUM RADIUS

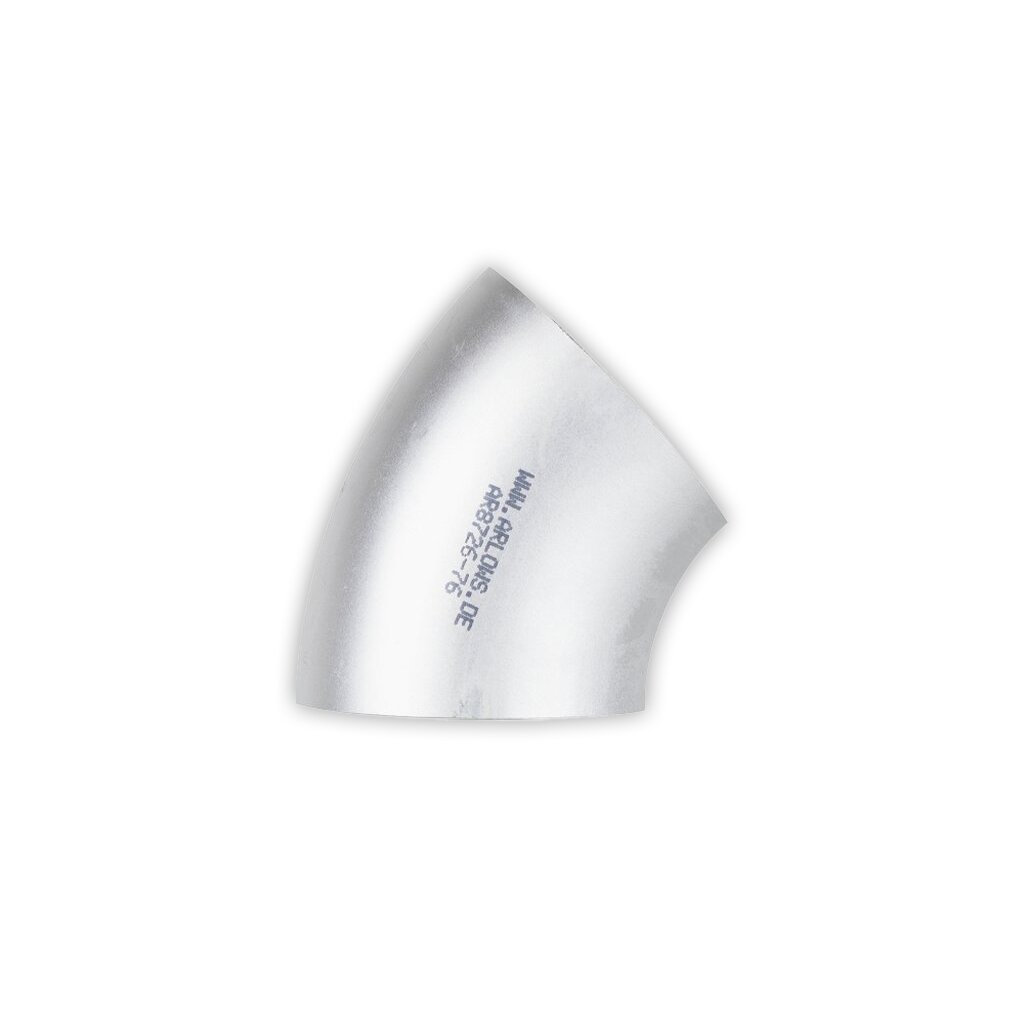

Arlows aluminium pipe bend 45° medium radius AlMgSi0.5

45° bend for clean direction changes. Consistent wall thickness, weldable, no thin spots in the curve.
Mandrel bend in AlMgSi0.5 (EN AW-6060). The medium radius keeps the flow section open. 3 mm wall thickness throughout. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.

Why this bend?

45 DEGREE

Practical angle for charge air and intake. Formed from one piece, or cut smaller if the angle is too large.

3 MM WALL

Consistent wall thickness with no weak spots in the bend. Pressure resistant for charge air and intake.

WELDABLE

AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.

MEDIUM RADIUS

Compromise between space and flow. Example: 45 mm radius at 50 mm outer diameter. Less turbulence than a tight bend.

Use cases

Charge air piping and charge pipe routing
Intake tubes and cold air routing
Custom hard lines for water or oil coolers
Exhaust in motorsport (watch temperature range)
Not for fuel without material check

Technical data

Part number	AR8726
Material	Aluminium AlMgSi0.5 (EN AW-6060)
Angle	45°
Radius	medium radius (depends on diameter, example 45 mm at 50 mm OD)
Wall thickness	3 mm throughout
Diameter	see variant selection (outer diameter)
Processing	weld, saw, deburr

Fitment

Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.

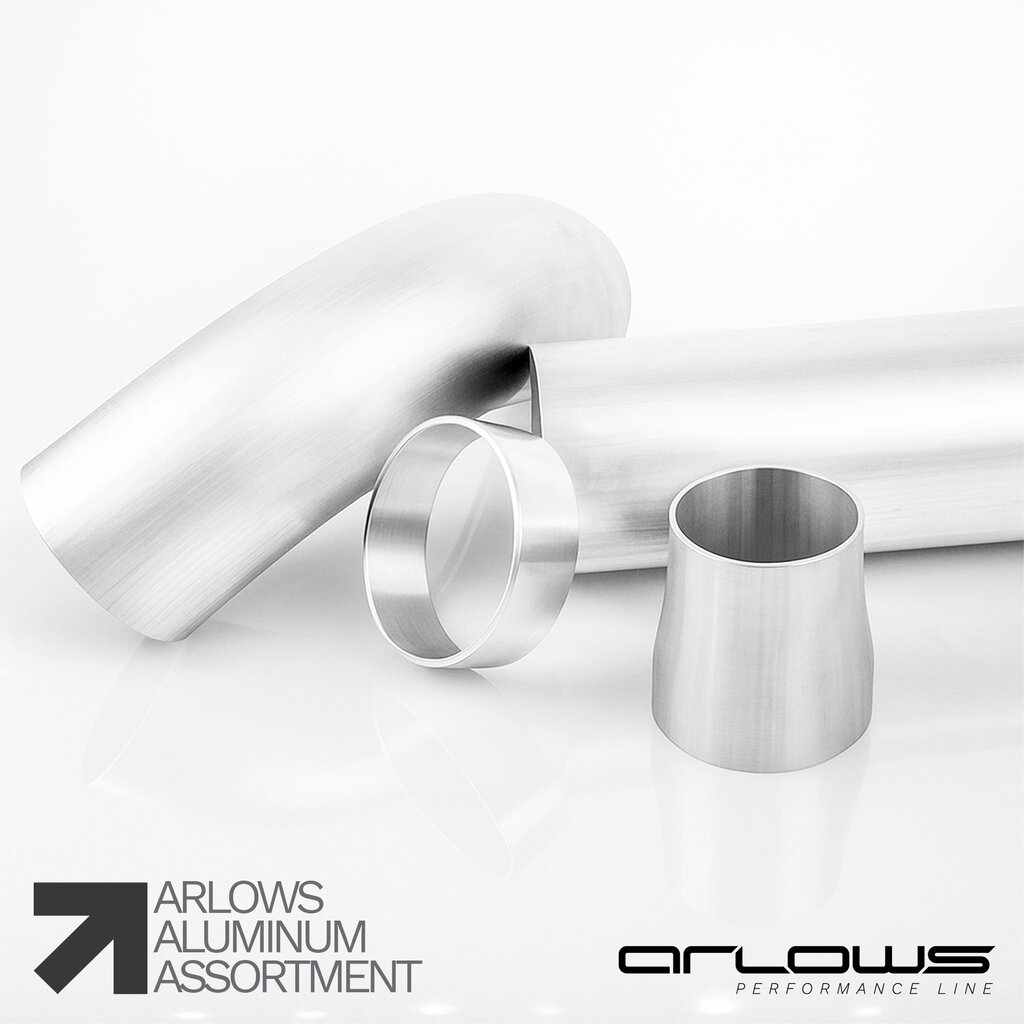

Matching straight tubes and ends?

Same alloy

SHOP ALUMINIUM TUBES >

Manufacturers:	Arlows
Category:	ALUMINUM PIPES
SKU:	AR8726

Item information	Value
Item weight:	0,10 kg
