Arlows aluminium pipe bend 60° medium radius AlMgSi0.5
60° bend for clear direction changes. Consistent wall thickness, weldable, no thin spots in the curve.

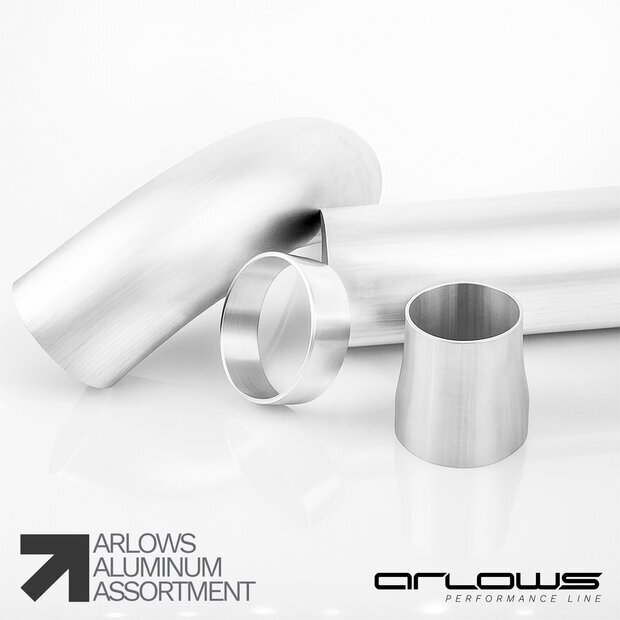

Mandrel bend in AlMgSi0.5 (EN AW-6060). The medium radius keeps the flow section open. 3 mm wall thickness throughout. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.
Why this bend?
60 DEGREE
Stronger angle for charge air and intake. Formed from one piece, or cut smaller if the angle is too large.
3 MM WALL
Consistent wall thickness with no weak spots in the bend. Pressure resistant for charge air and intake.
WELDABLE
AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.
MEDIUM RADIUS
Compromise between space and flow. Less turbulence than a tight bend, more compact than a wide one.
Use cases
- Charge air piping and charge pipe routing
- Intake tubes and cold air routing
- Custom hard lines for water or oil coolers
- Exhaust in motorsport (watch temperature range)
- Not for fuel without material check
Technical data
| Part number | AR8789 |
| Material | Aluminium AlMgSi0.5 (EN AW-6060) |
| Angle | 60° |
| Radius | medium radius (depends on diameter) |
| Wall thickness | 3 mm throughout |
| Diameter | see variant selection (outer diameter) |
| Processing | weld, saw, deburr |
Fitment
Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.
| Manufacturer: | Arlows |
| Category: | ALUMINUM PIPES |
| Item number: | AR8789 |
| Product weight: | 0,10 Kg |
