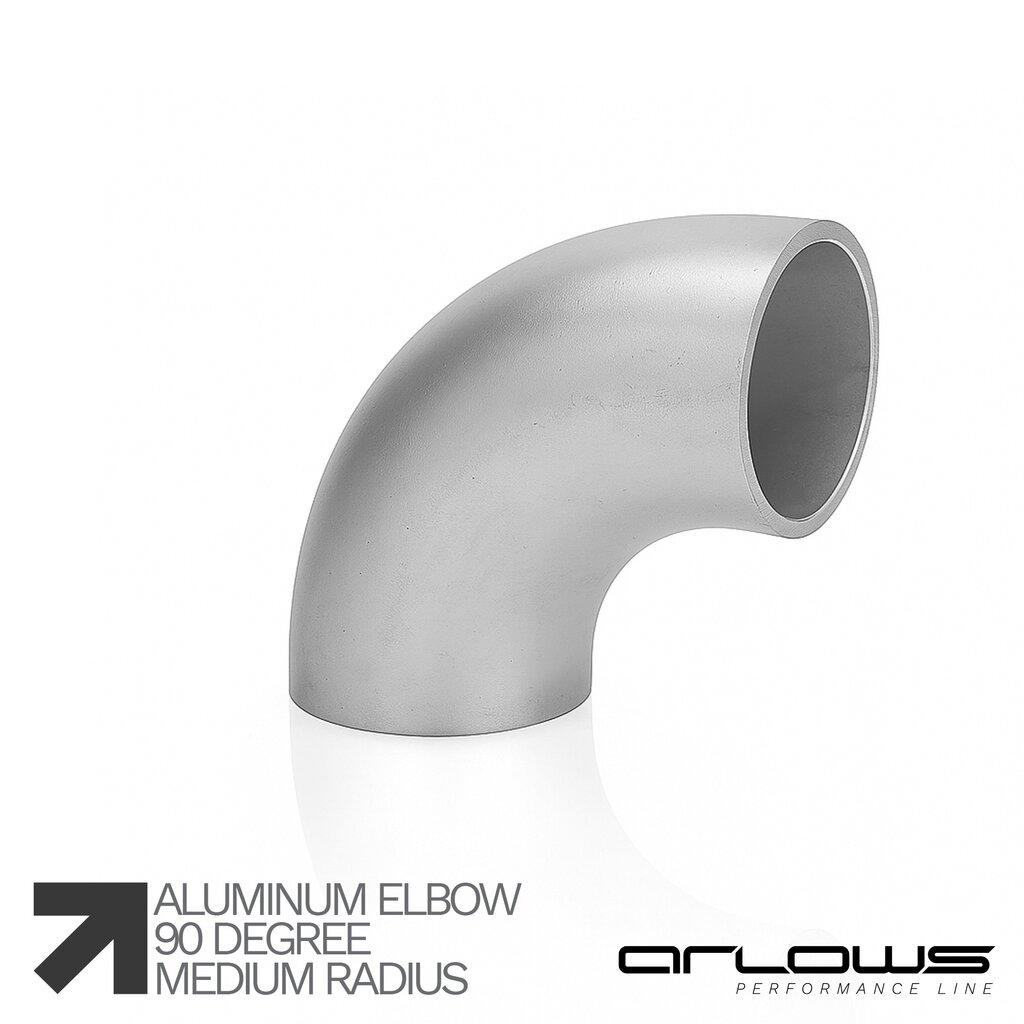

Arlows aluminium pipe bend 90° medium radius AlMgSi0.5
90° bend for clean direction changes. Consistent wall thickness, weldable, no thin spots in the curve.
Mandrel bend in AlMgSi0.5 (EN AW-6060). The medium radius keeps the flow section open and saves space compared with a wide bend. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.
Why this bend?
90 DEGREE
Full angle for charge air and intake. Formed from one piece, or cut into smaller angles if the angle is too large.
MEDIUM RADIUS
Compromise between space and flow. Less turbulence than a tight bend, more compact than a wide one.
WELDABLE

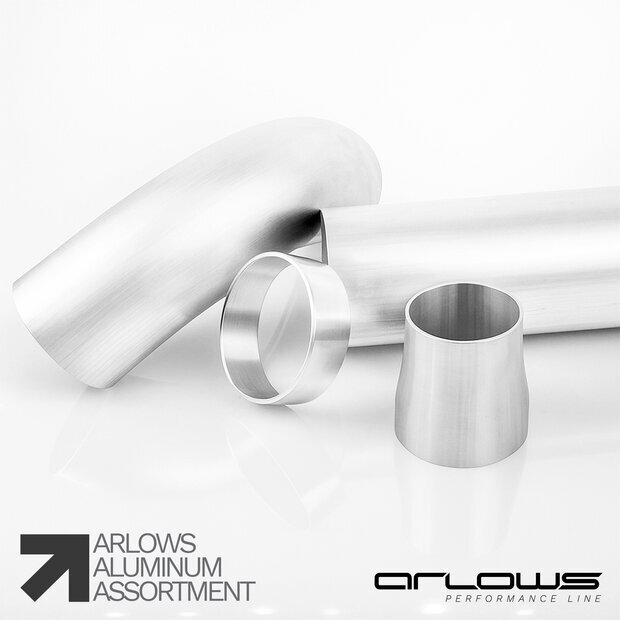

AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.
LIGHT
Aluminium saves weight. Pressure resistant for charge air and intake in the Arlows bend series.
Use cases
- Charge air piping and charge pipe routing
- Intake tubes and cold air routing
- Custom hard lines for water or oil coolers
- Exhaust in motorsport (watch temperature range)
- Not for fuel without material check
Technical data
| Part number | AR8360 |
| Material | Aluminium AlMgSi0.5 (EN AW-6060) |
| Angle | 90° |
| Radius | medium radius (depends on diameter) |
| Wall thickness | see variant / series |
| Diameter | see variant selection (outer diameter) |
| Processing | weld, saw, deburr |
Fitment
Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.
| Manufacturer: | Arlows |
| Category: | ALUMINUM PIPES |
| Item number: | AR6275-1 |
| Product weight: | 0,10 Kg |
