Arlows Aluminum Angle 90° Tight Radius (AlMgSi0,5 Aluminum Angle)

Arlows Aluminum Angle 90° Tight Radius (AlMgSi0,5 Aluminum Angle)

Arlows aluminium pipe bend 90° tight radius ( AlMgSi0,5 aluminium bend )

diameter

from

0,00 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	17,49 €*
3	16,97 €*
5	17,49 €*
10	17,49 €*

This item has variations. Please select the requested variation.

Available immediately

Description
Product tags

90° · TIGHT RADIUS

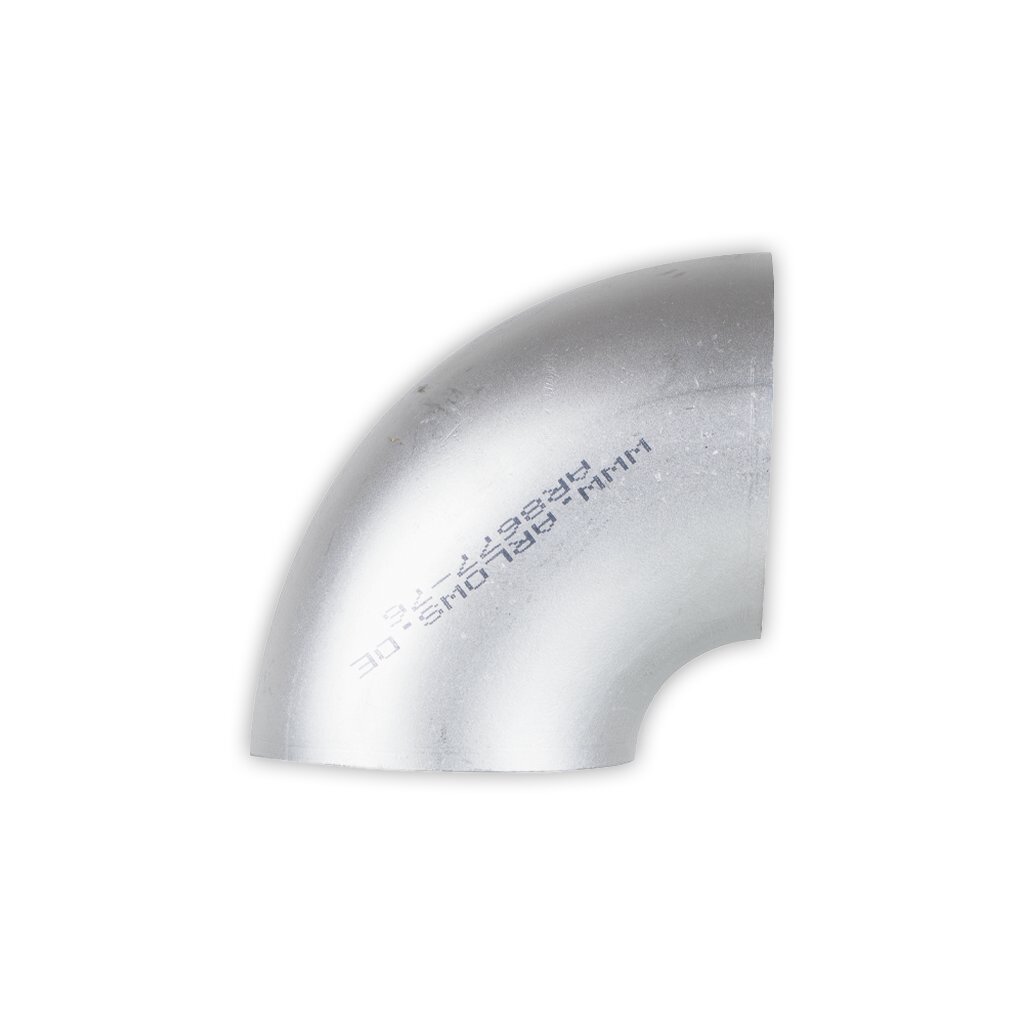

Arlows aluminium pipe bend 90° tight radius AlMgSi0.5

Tight 90° bend for cramped engine bay installations. Consistent wall thickness, weldable, no thin spots in the curve.
Mandrel bend in AlMgSi0.5 (EN AW-6060). The tight radius saves space, the section stays open. 3 mm wall thickness throughout. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.

Why this bend?

90 DEGREE TIGHT

Full angle for tight spaces. Formed from one piece, or cut into 3 x 30° or 2 x 45° if the angle is too large.

3 MM WALL

Consistent wall thickness with no weak spots in the bend. Pressure resistant for charge air and intake.

WELDABLE

AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.

TIGHT RADIUS

Minimal space requirement. Example: 45 mm radius at 50 mm outer diameter. Ideal behind the cooler pack or in a duct.

Use cases

Charge air piping and charge pipe routing in tight spaces
Intake tubes and cold air routing
Custom hard lines for water or oil coolers
Exhaust in motorsport (watch temperature range)
Not for fuel without material check

Technical data

Part number	AR8677
Material	Aluminium AlMgSi0.5 (EN AW-6060)
Angle	90°
Radius	tight radius (depends on diameter, example 45 mm at 50 mm OD)
Wall thickness	3 mm throughout
Diameter	see variant selection (outer diameter)
Processing	weld, saw, deburr

Fitment

Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.

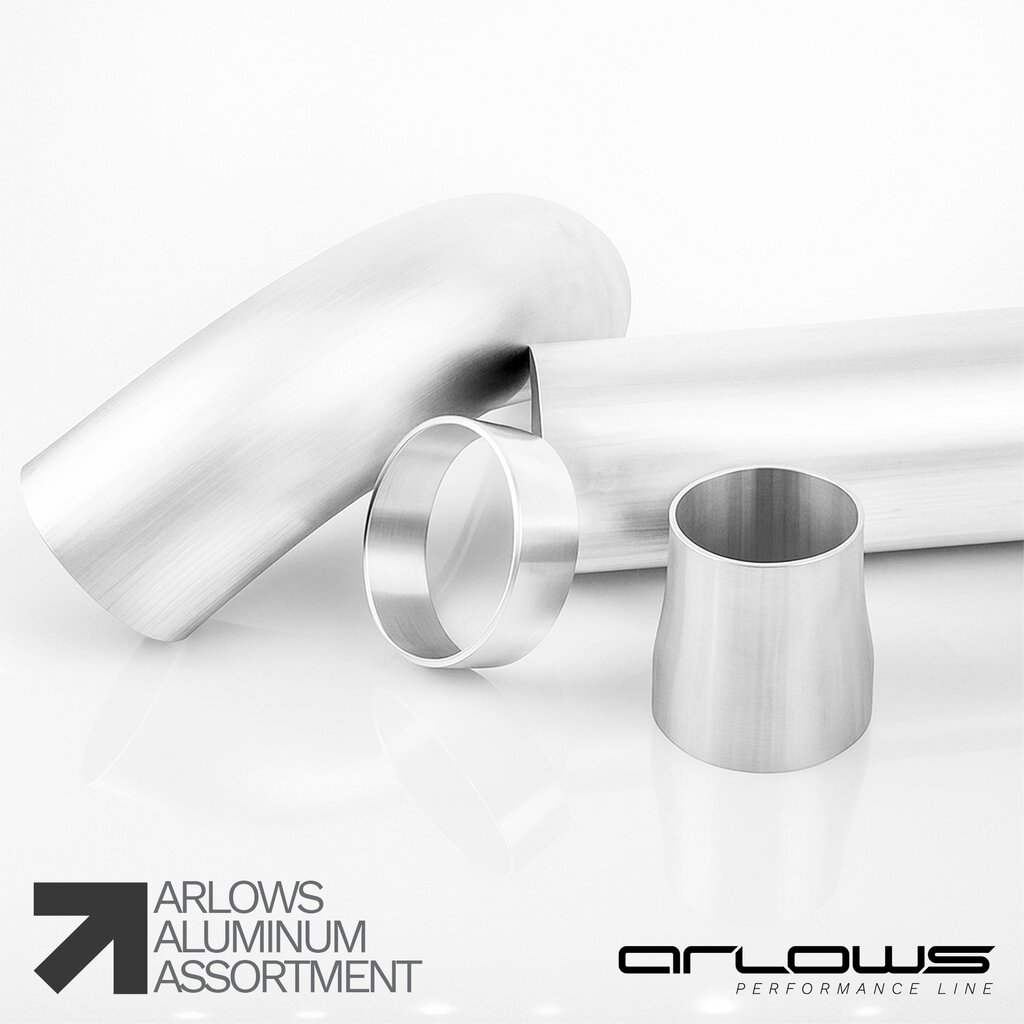

Matching straight tubes and ends?

Same alloy

SHOP ALUMINIUM TUBES >

Manufacturers:	Arlows
Category:	ALUMINUM PIPES
SKU:	AR8677

Item information	Value
Item weight:	0,10 kg
