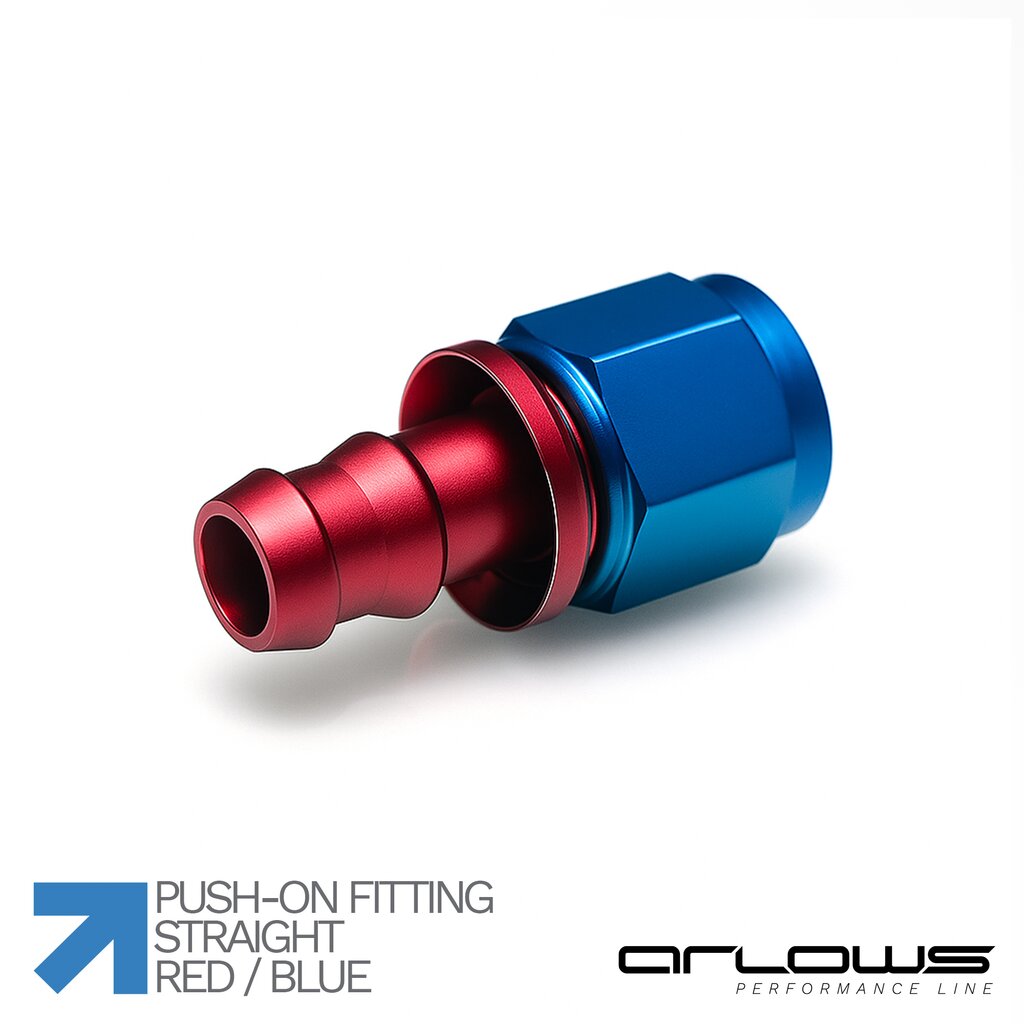

ARLOWS PUSH-ON ALUMINUM FITTING - STRAIGHT
Push on. Rock solid.
Lightweight. Strong. Perfect for rubber hoses.
Building your dream car or race car? Then you need connections you can trust 100 %. The Arlows Push-On Aluminum Fitting straight is the high-quality anodized aluminum fitting specially designed for our Dash rubber hoses.
Simply push on – thanks to the push-on design extremely quick and secure to install. Minimal weight, maximum stability and a premium, corrosion-resistant finish for absolutely tight connections.
Why racers and tuners choose Arlows:
- Push-On design - lightning-fast and tool-free installation
- Ultra-lightweight aluminum - noticeably better handling
- High-quality anodizing - premium racing look + corrosion protection
- Precision engineered - 100 % leak-free connection
- Straight design - space-saving and direct
- Universally compatible with all common Dash rubber hoses
- Arlows premium quality - track-proven
Technical Specifications
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16 - 20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16 - 18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4 - 16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8 - 14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16 - 12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16 - 12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8 - 12 UNF | 28.50 mm | 35.81 mm |
Perfect match: Matching hose clamps & holders
To the matching hose holders →
