Arlows beaded weld-on end AlMgSi0.5
Secure. Slip-proof. Up to 4 bar. Precision machined end with bead for tight charge air connections.
Made from aluminium AlMgSi0.5 (precision machined). The pronounced bead locks the silicone hose and clamp in place, even under high boost. 30 mm length. Weld to the tube, then fit hose and clamp. Diameter is selected in the variant. Laser etched Arlows logo.
Why this end piece?
BEAD
Integrated bead as stop. The hose does not creep under the clamp. Tested up to 4 bar boost, no leaks.
30 MM LENGTH
Compact and stable. Ideal for tight installations. Precision machined for a clean fit.
WELD ON

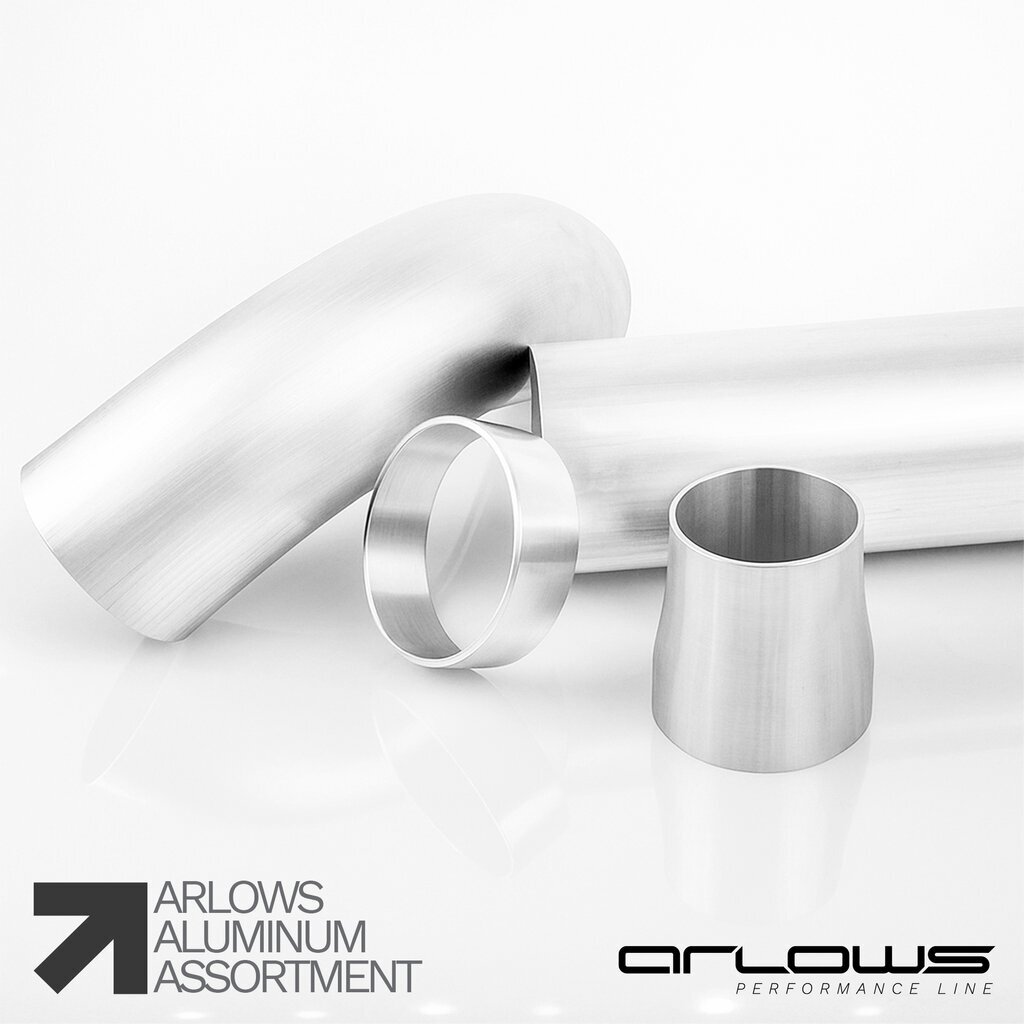

Perfect for welding to aluminium tubes. Clean, porosity-free welds with TIG or MIG. Same alloy as the Arlows tubes and bends.
LIGHT
Aluminium saves weight. Strong and corrosion resistant. For charge air piping and intake.
Use cases
- Charge air piping (charge pipe to silicone hose)
- Intake tubes and cold air routing
- Custom hard lines where the hose needs a secure hold
- Not for fuel without material check
Technical data
| Part number | AR12386 |
| Material | Aluminium AlMgSi0.5 (precision machined) |
| Length | 30 mm |
| Design | beaded weld-on end |
| Pressure | tested up to 4 bar |
| Diameter | see variant selection |
| Processing | weld, deburr |
Fitment
Match the diameter to the tube and hose. Deburr the ends. Weld to the aluminium tube. Then slide on the silicone hose and tighten with a clamp. The bead prevents slipping under pressure and vibration.
| Manufacturer: | Arlows |
| Category: | ALUMINUM PIPES |
| Item number: | AR12386-19 |
| Product weight: | 0,10 Kg |
