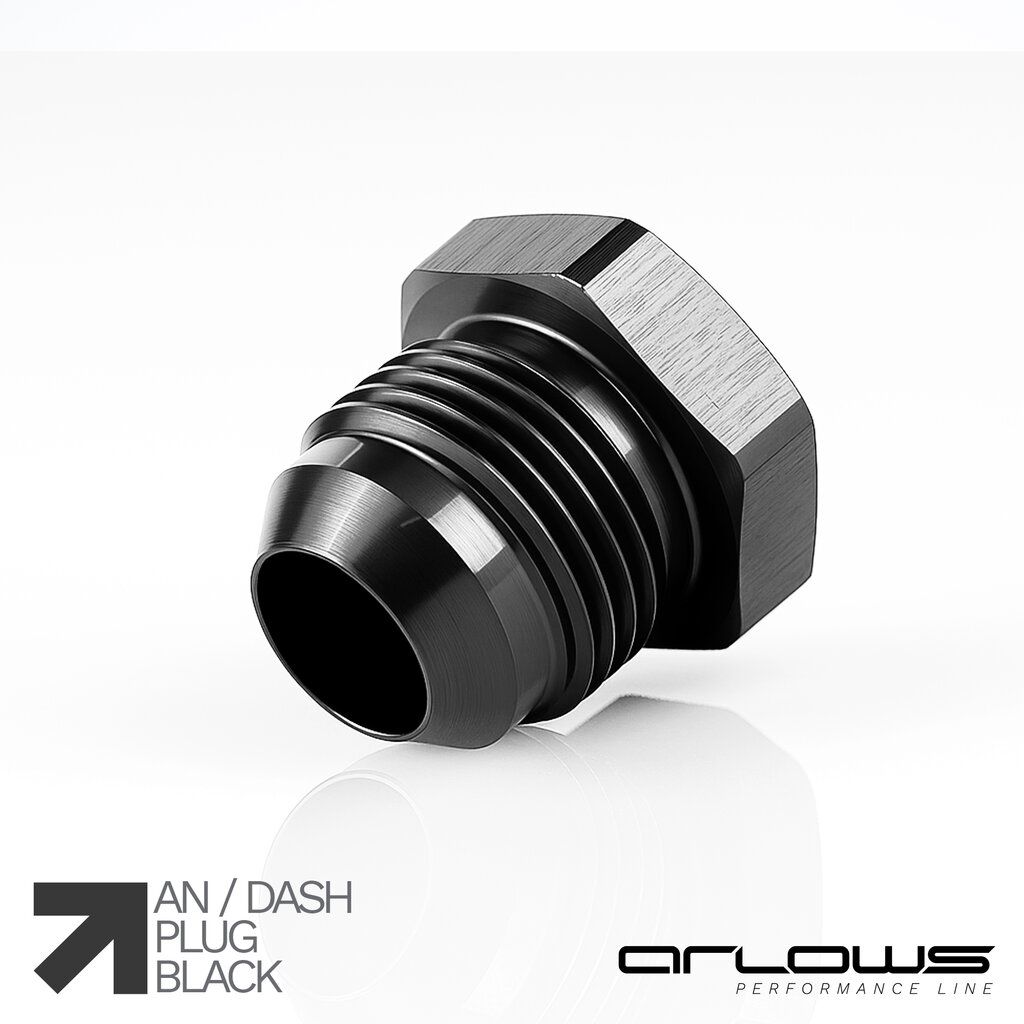

Arlows Blanking plug Black Dash 20 ( 1 5/8 - 12 UNF )
Blank off an unused port.
This blanking plug closes a compatible port. The selected version determines the thread size and required sealing arrangement. This version: Thread: Dash 20 ( 1 5/8 - 12 UNF ).
Benefits at a glance
CLOSE THE UNUSED PORT
The matching version provides a closure for a port that is not required.
ANODISED FINISH
The anodised aluminium construction complements compatible line components.
Technical specifications
| Thread | Dash 20 ( 1 5/8 - 12 UNF ) |
|---|---|
| Colour | Black |
| Material | Anodised aluminium |
| SKU | AR5637-1 |
Applications
For closing suitable unused ports. Pressure, temperature and fluid suitability depend on both the plug and the receiving component.
Installation & notes
Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.
Common question
Can I choose the plug by thread size alone?
No. The sealing arrangement must also match. NPT, AN flare and ORB connections use different sealing methods.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
