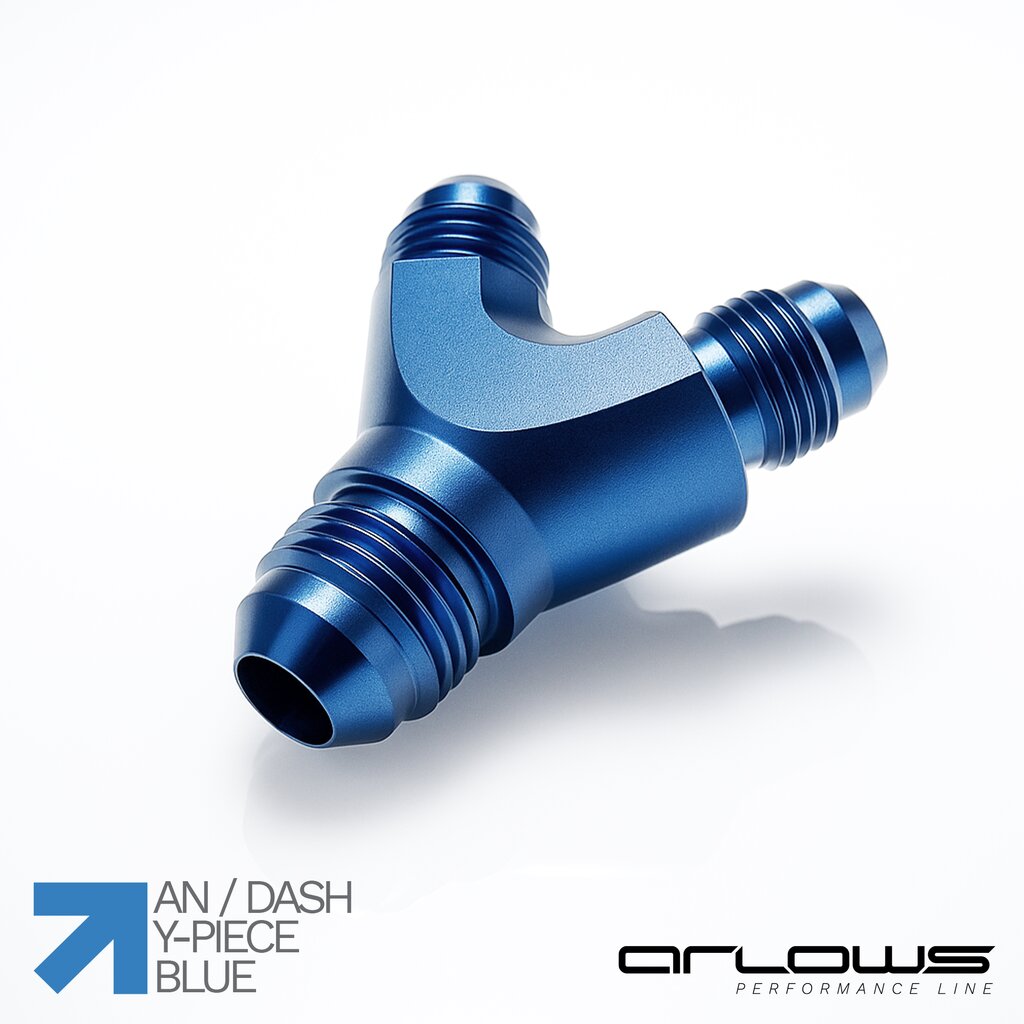

Arlows Aluminium Y-block 1x Dash 12/2x Dash 12
Join three lines in a Y layout.
This aluminium Y-block links one connection with two additional line routes. The stated port combination helps you plan a compatible distribution layout. This version: Connection sizes: 1x Dash 12/2x Dash 12.
Benefits at a glance
Y-SHAPED CONNECTION
Three ports allow compatible lines to be split or joined.
CNC-MACHINED ALUMINIUM
The blue anodised aluminium construction combines machined connection geometry with a protective surface finish.
Technical specifications
| Connection sizes | 1x Dash 12/2x Dash 12 |
|---|---|
| Material | Anodised aluminium |
| Colour | Blue anodised |
| SKU | AR1423-1 |
Applications
For custom line systems, such as connecting two fuel pumps to a common suction line where the cross-sections and complete system are suitably designed.
Installation & notes
Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer’s tightening instructions.
Common question
Does the Y-block automatically divide flow equally?
No. Distribution depends on the pumps, line resistance and complete system design. The block does not replace flow control or check valves.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
